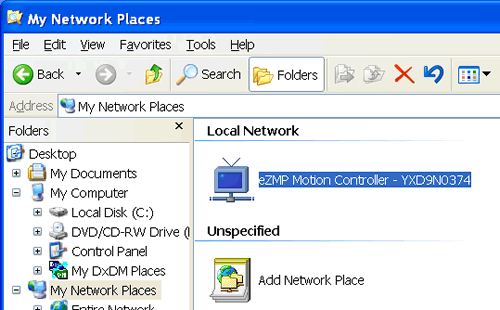

Double-click on the My Network Places icon on the desktop or go to the Start Menu, click Network Connections, and under Other Places, click My Network Places. A window similar to the image shown below should appear with an icon for the eZMP Motion Controller on the local network which means that the eZMP is advertising itself as an available device via Universal Plug and Play.

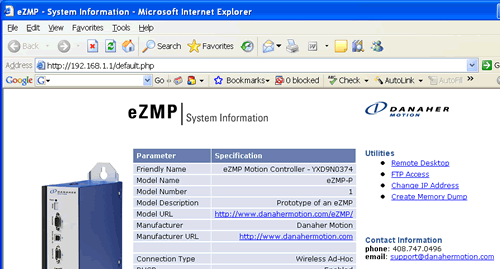

Double-click on the eZMP Motion Controller icon to load the eZMP System Information homepage in Internet Explorer.

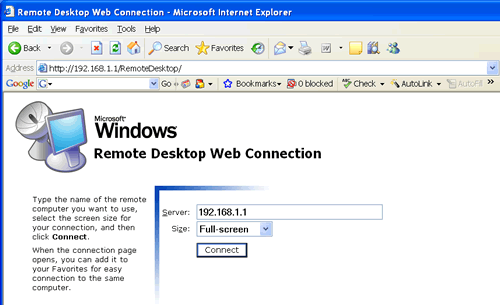

From the Utilities links on the eZMP homepage, click on Remote Desktop. This will load the remote desktop login page for the eZMP (shown below). Click Connect to continue connecting to the eZMP.

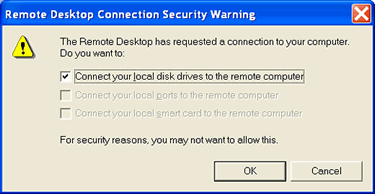

If a Remote Desktop Connection Security Warning appears, click OK to continue connecting.

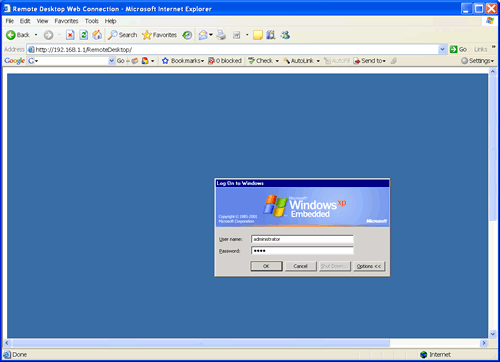

The Windows XP Embedded login window will appear in the remote desktop window. The default username and password are:
User name: administrator Password: ezmp
Click OK to login.
You are now logged in to the eZMP motion controller with a remote desktop connection.
