XMP-CPCI-6U Main Board, Rear I/O

Backplane Connectors

CPCI-6U Main Board

Location	Function	Pinouts
J5	Axes 0-3	pinouts
J4	Axes 4-7	pinouts
J3	User I/O	pinouts
J1	Bus	pinouts

On CPCI-6U controllers using backplane I/O, drive signals are conveyed through connectors J3, J4 and J5.

For main boards, axes 0-3 are controlled through connector J5. Axes 4-7 are controlled through connector J4. User I/O is provided through connector J3.

On expansion boards, axes 8-11 are controlled through connector J5. Axes 12-15 are controlled through connector J4. User I/O is provided through connector J3.

On both main and expansion boards, connector J1 is reserved for computer data bussing. For more information on the CPCI-6U data bussing, click here.

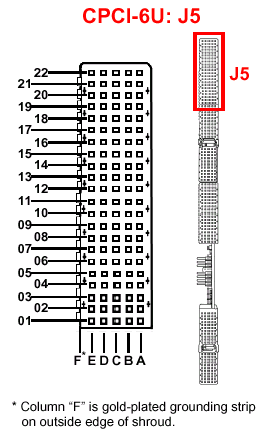

CPCI-6U Main Board, CPCI Backplane Connector J5: Axes 0-3

**J5 backplane connector for Axes 0-3 (CPCI main board)**
Pin	F	E	D	C	B	A
22	Gnd	Enc2_A-	Enc2_A+	5V_OUT	Xcvr1C-	Xcvr1C+
21	Gnd	Enc2_B-	Enc2_B+	Gnd	Xcvr1B-	Xcvr1B+
20	Gnd	Enc2_I-	Enc2_I+	Home2_IN	Xcvr1A-	Xcvr1A+
19	Gnd	Aux_Dac_OUT_2-	Aux_Dac_OUT_2+	Pos_Lim2_IN	Amp_En1_Emitter	Amp_En1_Collector
18	Gnd	Cmd_Dac_OUT_2-	Cmd_Dac_OUT_2+	Neg_Lim2_IN	Amp_Flt1_Rtn	Amp_Flt1_IN
17	Gnd	Amp_Flt2_Rtn	Amp_Flt2_IN	HomeLim2_Rtn	Aux_Dac_OUT_1-	Aux_Dac_OUT_1+
16	Gnd	Amp_En2_Emitter	Amp_En2_Collector	HomeLim1_Rtn	Cmd_Dac_OUT_1-	Cmd_Dac_OUT_1+
15	Gnd	Xcvr2A-	Xcvr2A+	Neg_Lim1_IN	Enc1_I-	Enc1_I+
14	Gnd	Xcvr2B-	Xcvr2B+	Pos_Lim1_IN	Enc1_B-	Enc1_B+
13	Gnd	Xcvr2C-	Xcvr2C+	Home1_IN	Enc1_A-	Enc1_A+
12	Gnd	Enc3_A-	Enc3_A+	5V_OUT	Xcvr0C-	Xcvr0C+
11	Gnd	Enc3_B-	Enc3_B+	Not Connected	Xcvr0B-	Xcvr0B+
10	Gnd	Enc3_I-	Enc3_I+	Home3_IN	Xcvr0A-	Xcvr0A+
9	Gnd	Aux_Dac_OUT_3-	Aux_Dac_OUT_3+	Pos_Lim3_IN	Amp_En0_Emitter	Amp_En0_Collector
8	Gnd	Cmd_Dac_OUT_3-	Cmd_Dac_OUT_3+	Neg_Lim3_IN	Amp_Flt0_Rtn	Amp_Flt0_IN
7	Gnd	Amp_Flt3_Rtn	Amp_Flt3_IN	HomeLim3_Rtn	Aux_Dac_OUT_0-	Aux_Dac_OUT_0+
6	Gnd	Amp_En3_Emitter	Amp_En3_Collector	HomeLim0_Rtn	Cmd_Dac_OUT_0-	Cmd_Dac_OUT_0+
5	Gnd	Xcvr3A-	Xcvr3A+	Neg_Lim0_IN	Enc0_I-	Enc0_I+
4	Gnd	Xcvr3B-	Xcvr3B+	Pos_Lim0_IN	Enc0_B-	Enc0_B+
3	Gnd	Xcvr3C-	Xcvr3C+	Home0_IN	Enc0_A-	Enc0_A+
2	Gnd	Analog_IN_2-	Analog_IN_2+	Gnd	Analog_IN_1-	Analog_IN_1+
1	Gnd	Analog_IN_3-	Analog_IN_3+	AGnd	Analog_IN_0-	Analog_IN_0+
Pin	F	E	D	C	B	A

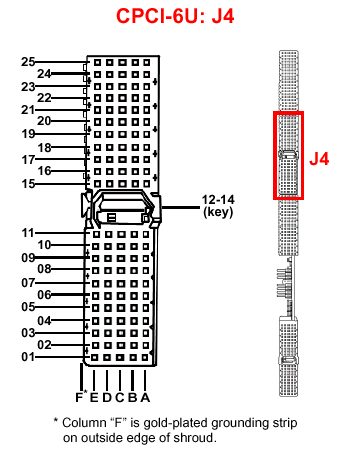

CPCI-6U Main Board, CPCI Backplane Connector J4: Axes 4-7

**J4 backplane connector for Axes 4-7 (CPCI main board)**
Pin	F	E	D	C	B	A
25	Gnd	Analog_IN_6-	Analog_IN_6+	AGnd	Analog_IN_5-	Analog_IN_5+
24	Gnd	Analog_IN_7-	Analog_IN_7+	Gnd	Analog_IN_4-	Analog_IN_4+
23	Gnd	Enc6_A-	Enc6_A+	Home6_IN	Xcvr5C-	Xcvr5C+
22	Gnd	Enc6_B-	Enc6_B+	Pos_Lim6_IN	Xcvr5B-	Xcvr5B+
21	Gnd	Enc6_I-	Enc6_I+	Neg_Lim6_IN	Xcvr5A-	Xcvr5A+
20	Gnd	Cmd_Dac_OUT_6-	Cmd_Dac_OUT_6+	HomeLim6_Rtn	Amp_En5_Emitter	Amp_En5_Collector
19	Gnd	Aux_Dac_OUT_6-	Aux_Dac_OUT_6+	HomeLim5_Rtn	Amp_Flt5_Rtn	Amp_Flt5_IN
18	Gnd	Amp_Flt6_Rtn	Amp_Flt6_IN	Neg_Lim5_IN	Aux_Dac_OUT_5-	Aux_Dac_OUT_5+
17	Gnd	Amp_En6_Emitter	Amp_En6_Collector	Pos_Lim5_IN	Cmd_Dac_OUT_5-	Cmd_Dac_OUT_5+
16	Gnd	Xcvr6A-	Xcvr6A+	Home5_IN	Enc5_I-	Enc5_I+
15	Gnd	Xcvr6B-	Xcvr6B+	Not Connected	Enc5_B-	Enc5_B+
14	Gnd	Not Connected	Not Connected		Not Connected	Not Connected
13	Gnd
12	Gnd
11	Gnd	Xcvr6C-	Xcvr6C+	5V_OUT	Enc5_A-	Enc5_A+
10	Gnd	Enc7_A-	Enc7_A+	Home7_IN	Xcvr4C-	Xcvr4C+
9	Gnd	Enc7_B-	Enc7_B+	Pos_Lim7_IN	Xcvr4B-	Xcvr4B+
8	Gnd	Enc7_I-	Enc7_I+	Neg_Lim7_IN	Xcvr4A-	Xcvr4A+
7	Gnd	Cmd_Dac_OUT_7-	Cmd_Dac_OUT_7+	HomeLim7_Rtn	Amp_En4_Emitter	Amp_En4_Collector
6	Gnd	Aux_Dac_OUT_7-	Aux_Dac_OUT_7+	HomeLim4_Rtn	Amp_Flt4_Rtn	Amp_Flt4_IN
5	Gnd	Amp_Flt7_Rtn	Amp_Flt7_IN	Neg_Lim4_IN	Aux_Dac_OUT_4-	Aux_Dac_OUT_4+
4	Gnd	Amp_En7_Emitter	Amp_En7_Collector	Pos_Lim4_IN	Cmd_Dac_OUT_4-	Cmd_Dac_OUT_4+
3	Gnd	Xcvr7A-	Xcvr7A+	Home4_IN	Enc4_I-	Enc4_I+
2	Gnd	Xcvr7B-	Xcvr7B+	Gnd	Enc4_B-	Enc4_B+
1	Gnd	Xcvr7C-	Xcvr7C+	5V_OUT	Enc4_A-	Enc4_A+
Pin	F	E	D	C	B	A

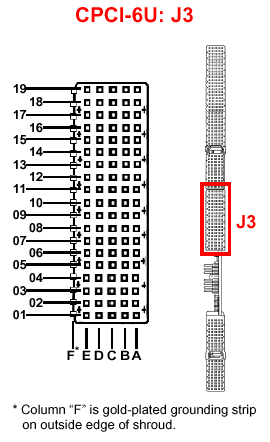

CPCI-6U Main Board, CPCI Backplane Connector J3: User I/O

**J3 backplane connector for User I/O (CPCI main board)**
Pin	F	E	D	C	B	A
19	Gnd	EncB_A-	EncB_A+	Gnd	EncA_A-	EncA_A+
18	Gnd	EncB_B-	EncB_B+	Gnd	EncA_B-	EncA_B+
17	Gnd	EncB_I-	EncB_I+	Gnd	EncA_I-	EncA_I+
16	Gnd	UserIO_B2_Rtn	UserIO_B2	Gnd	UserIO_A0_Rtn	UserIO_A0
15	Gnd	UserIO_B3_Rtn	UserIO_B3	Gnd	UserIO_A3_Rtn	UserIO_A3
14	Gnd	UserIO_B1_Rtn	UserIO_B1	Gnd	RESET_IN	ESTOP_IN
13	Gnd	UserIO_A2	UserIO_A2_Rtn	Gnd	UserIO_A1_Rtn	UserIO_A1
12	Gnd	Not Connected	Not Connected	UserIO_B0_Rtn	Not Connected	Not Connected
11	Gnd			UserIO_B0
10	Gnd			Not Connected
9	Gnd
8	Gnd
7	Gnd
6	Gnd
5	Gnd			Gnd
4	Gnd			Not Connected
3	Gnd			Gnd
2	Gnd			Not Connected
1	Gnd			Gnd
Pin	F	E	D	C	B	A
