XMP-CPCI-6U Expansion Board, Rear I/O

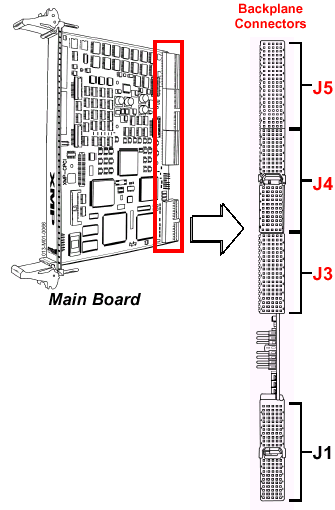

Backplane Connectors

CPCI-6U Expansion Board

Location	Function	Pinouts
J5	Axes 8-11	pinouts
J4	Axes 12-15	pinouts
J3	User I/O	pinouts
J1	Bus	pinouts

On CPCI-6U controllers using backplane I/O, drive signals are conveyed through connectors J3, J4 and J5.

For main boards, axes 0-3 are controlled through connector J5. Axes 4-7 are controlled through connector J4. User I/O is provided through connector J3.

On expansion boards, axes 8-11 are controlled through connector J5. Axes 12-15 are controlled through connector J4. User I/O is provided through connector J3.

On both main and expansion boards, connector J1 is reserved for computer data bussing. For more information on the CPCI-6U data bussing, click here.

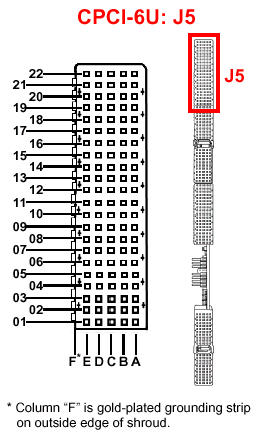

CPCI-6U Expansion Board, CPCI Backplane Connector J5: Axes 8 - 11

**J5 backplane connector for Axes 8-11 (CPCI expansion board)**
Pin	F	E	D	C	B	A
22	Gnd	Enc10_A-	Enc10_A+	5V_OUT	Xcvr9C-	Xcvr9C+
21	Gnd	Enc10_B-	Enc10_B+	Gnd	Xcvr9B-	Xcvr9B+
20	Gnd	Enc10_I-	Xcvr9A+	Home10_IN	Xcvr9A-	Enc10_I+
19	Gnd	Aux_Dac_OUT_10-	Amp_En9_Collector	Pos_Lim10_IN	Amp_En9_Emitter	Aux_Dac_OUT_10+
18	Gnd	Cmd_Dac_OUT_10-	Amp_Flt9_IN	Neg_Lim10_IN	Amp_Flt9_Rtn	Cmd_Dac_OUT_10+
17	Gnd	Amp_Flt10_Rtn	Aux_Dac_OUT_9+	HomeLim10_Rtn	Aux_Dac_OUT_9-	Amp_Flt10_IN
16	Gnd	Amp_En10_Emitter	Amp_En10_Collector	HomeLim9_Rtn	Cmd_Dac_OUT_9-	Cmd_Dac_OUT_9+
15	Gnd	Xcvr10A-	Xcvr10A+	Neg_Lim9_IN	Enc9_I-	Enc9_I+
14	Gnd	Xcvr10B-	Xcvr10B+	Pos_Lim9_IN	Enc9_B-	Enc9_B+
13	Gnd	Xcvr10C-	Xcvr10C+	Home9_IN	Enc9_A-	Enc9_A+
12	Gnd	Enc11_A-	Enc11_A+	5V_OUT	Xcvr8C-	Xcvr8C+
11	Gnd	Enc11_B-	Enc11_B+	Not Connected	Xcvr8B-	Xcvr8B+
10	Gnd	Enc11_I-	Enc11_I+	Home11_IN	Xcvr8A-	Xcvr8A+
9	Gnd	Aux_Dac_OUT_11-	Aux_Dac_OUT_11+	Pos_Lim11_IN	Amp_En8_Emitter	Amp_En8_Collector
8	Gnd	Cmd_Dac_OUT_11-	Cmd_Dac_OUT_11+	Neg_Lim11_IN	Amp_Flt8_Rtn	Amp_Flt8_IN
7	Gnd	Amp_Flt11_Rtn	Amp_Flt11_IN	HomeLim11_Rtn	Aux_Dac_OUT_8-	Aux_Dac_OUT_8+
6	Gnd	Amp_En11_Emitter	Amp_En11_Collector	HomeLim8_Rtn	Cmd_Dac_OUT_8-	Cmd_Dac_OUT_8+
5	Gnd	Xcvr11A-	Xcvr11A+	Neg_Lim8_IN	Enc8_I-	Enc8_I+
4	Gnd	Xcvr11B-	Xcvr11B+	Pos_Lim8_IN	Enc8_B-	Enc8_B+
3	Gnd	Xcvr11C-	Xcvr11C+	Home8_IN	Enc8_A-	Enc8_A+
2	Gnd			Gnd
1	Gnd			AGnd
Pin	F	E	D	C	B	A

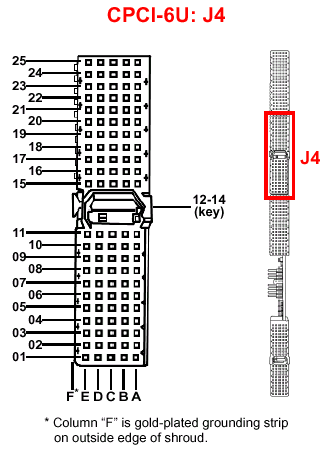

CPCI-6U Expansion Board, Rear Panel Connector J4: Axes 12 - 15

**J4 backplane connector for Axes 12-15 (CPCI expansion board)**
Pin	F	E	D	C	B	A
25	Gnd			AGnd
24	Gnd			Gnd
23	Gnd	Enc14_A-	Enc14_A+	Home14_IN	Xcvr13C-	Xcvr13C+
22	Gnd	Enc14_B-	Enc14_B+	Pos_Lim14_IN	Xcvr13B-	Xcvr13B+
21	Gnd	Enc14_I-	Enc14_I+	Neg_Lim14_IN	Xcvr13A	Xcvr13A+
20	Gnd	Cmd_Dac_OUT_14-	Cmd_Dac_OUT_14+	HomeLim14_Rtn	Amp_En13_Emitter	Amp_En13_Collector
19	Gnd	Aux_Dac_OUT_14-	Aux_Dac_OUT_14+	HomeLim13_Rtn	Amp_Flt13_Rtn	Amp_Flt13_IN
18	Gnd	Amp_Flt14_Rtn	Amp_Flt14_IN	Neg_Lim13_IN	Aux_Dac_OUT_5-	Aux_Dac_OUT_13+
17	Gnd	Amp_En14_Emitter	Amp_En14_Collector	Pos_Lim13_IN	Cmd_Dac_OUT_5-	Cmd_Dac_OUT_13+
16	Gnd	Xcvr14A-	Xcvr14A+	Home13_IN	Enc13_I-	Enc13_I+
15	Gnd	Xcvr14B-	Xcvr14B+	Not Connected	Enc13_B-	Enc13_B+
14	Gnd	Not Connected	Not Connected		Not Connected	Not Connected
13	Gnd
12	Gnd
11	Gnd	Xcvr14C-	Xcvr14C+	5V_OUT	Enc13_A-	Enc13_A+
10	Gnd	Enc15_A-	Enc15_A+	Home15_IN	Xcvr12C-	Xcvr12C+
9	Gnd	Enc15_B-	Enc15_B+	Pos_Lim15_IN	Xcvr12B-	Xcvr12B+
8	Gnd	Enc15_I-	Enc15_I+	Neg_Lim15_IN	Xcvr12A-	Xcvr12A+
7	Gnd	Cmd_Dac_OUT_15-	Cmd_Dac_OUT_15+	HomeLim15_Rtn	Amp_En12_Emitter	Amp_En12_Collector
6	Gnd	Aux_Dac_OUT_15-	Aux_Dac_OUT_15+	HomeLim12_Rtn	Amp_Flt12_Rtn	Amp_Flt12_IN
5	Gnd	Amp_Flt15_Rtn	Amp_Flt15_IN	Neg_Lim12_IN	Aux_Dac_OUT_12-	Aux_Dac_OUT_12+
4	Gnd	Amp_En15_Emitter	Amp_En15_Collector	Pos_Lim12_IN	Cmd_Dac_OUT_12-	Cmd_Dac_OUT_12+
3	Gnd	Xcvr15A-	Xcvr15A+	Home12_IN	Enc12_I-	Enc12_I+
2	Gnd	Xcvr15B-	Xcvr15B+	Gnd	Enc12_B-	Enc12_B+
1	Gnd	Xcvr15C-	Xcvr15C+	5V_OUT	Enc12_A-	Enc12_A+
Pin	F	E	D	C	B	A

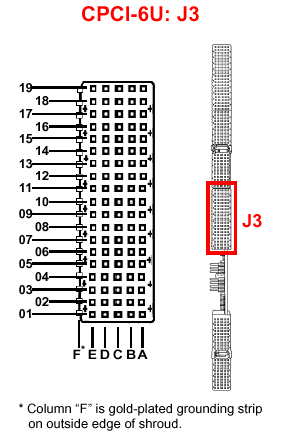

CPCI-6U Expansion Board, Rear Panel Connector J3: User I/O

**J3 backplane connector for User I/O (CPCI expansion board)**
Pin	F	E	D	C	B	A
19	Gnd	EncD_A-	EncD_A+	Gnd	EncC_A-	EncC_A+
18	Gnd	EncD_B-	EncD_B+	Gnd	EncC_B-	EncC_B+
17	Gnd	EncD_I-	EncD_I+	Gnd	EncC_I-	EncC_I+
16	Gnd	UserIO_D3_Rtn	UserIO_D3	Gnd	UserIO_A0_Rtn	UserIO_C0
15	Gnd	UserIO_D4_Rtn	UserIO_D4	Gnd	UserIO_C3_Rtn	UserIO_C3
14	Gnd	UserIO_D2_Rtn	UserIO_D2	Gnd	Not Used	Not Used
13	Gnd	UserIO_C2	UserIO_C2_Rtn	Gnd	UserIO_C1_Rtn	UserIO_C1
12	Gnd	Not Connected	Not Connected	UserIO_D1_Rtn	Not Connected	Not Connected
11	Gnd			UserIO_D14
10	Gnd			Not Connected
9	Gnd
8	Gnd
7	Gnd
6	Gnd
5	Gnd			Gnd
4	Gnd			Not Connected
3	Gnd			Gnd
2	Gnd			Not Connected
1	Gnd			Gnd
Pin	F	E	D	C	B	A
