Connecting XMP Transceiver I/O as a Capture Input

There are twelve (12) I/Os for each 4-axis motion block.

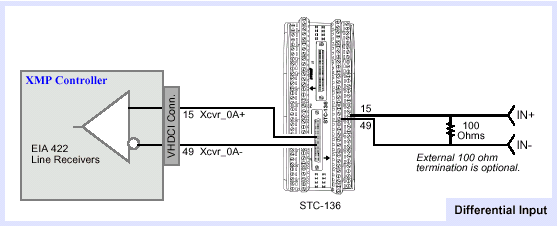

Connect Transceiver as Differential Capture Input

Connect transceiver as differential input.

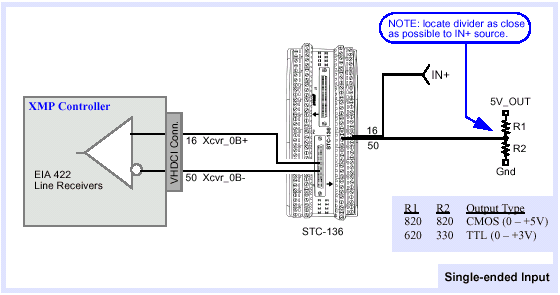

Connect Transceiver as Single-ended Capture Input

Connect transceiver as single-ended input.

Transceiver as a Compare Output

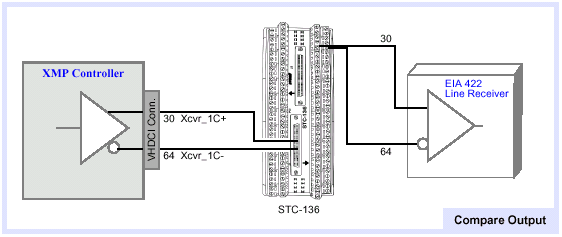

Connect Transceiver as Differential Compare Output

Connect transceiver as differential compare output.
