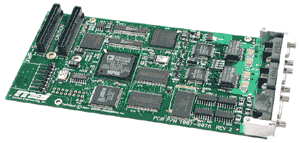

SynqNet Motion Controller:
    XMP-SynqNet-PMC



XMP-SynqNet-PMC
PN: T009-0002

See Also
UL Listing and CE Marking

Features

Feature
Parameter
Specification
Processor
DSP
 Analog Devices SHARC 32-bit floating point
Speed
 40 MHz / 150 MFLOPS
Board Interface
(SynqNet)
Connectors
 Micro D
Host Bus
 Universal PMC Slot
Memory Interface
 32-bit direct memory map
User I/O
Lines
 6+ ESTOP
Servo Loop
Update Rate
User programmable
4 Axes Update Rate
 Max: 20 kHz
8 Axes Update Rate
 Max: 10 kHz
Kinematic Ranges
Position, Velocity, Acceleration, Jerk
 32-bit floating point
Environment
Operating Temp.
 0-50 degrees C
Storage Temp.
 0-50 degrees C
Humidity
 20-90% RH, non-condensing

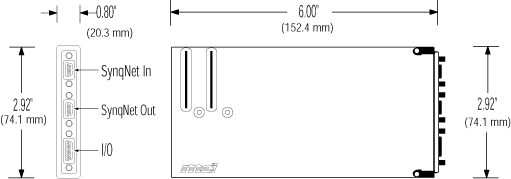

Dimensions

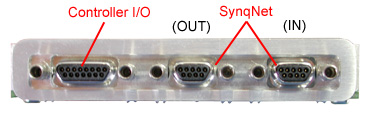

Connectors

Feature
Pinouts
PNs w/
Option
Micro-D
All
Controller I/O
All
