Quick Start Guide XMP-SynqNet Controller

PMC

PMC to PCI | PMC to CPCI | PMC to motherboard

PMC stands for PCI Mezzanine Card. It is an ultra-compact motion controller that provides a direct connection to SynqNet motion control networks and can be readily customized to fit the requirements of most applications. On the XMP-SynqNet-PMC controllers, the bussing occurs via the mezzanine connectors, which are mounted at one corner of the card (see photo below). PMC and CPCI adapter cards are also available, which allow the installation of the PMC card into a standard PCI or CPCI slot.

XMP-SynqNet-PMC PN: T009-0002

PMC to PCI Adapter Card

PMC to PCI Adapter Card MEI PN: 8001-0031 Dynamic Engineering PN: PCI2PMC www.dyneng.com

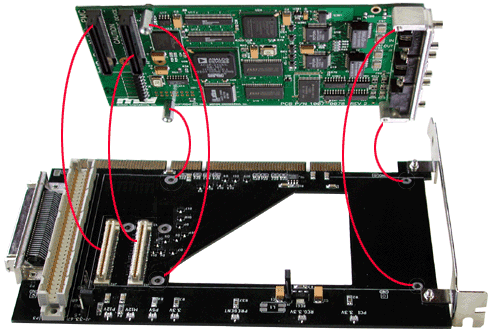

When mating an XMP-SynqNet-PMC card to a compatible PCI converter card, be sure that the mezzanine connectors and stand-offs all line-up correctly. Secure the two boards with the screws provided.

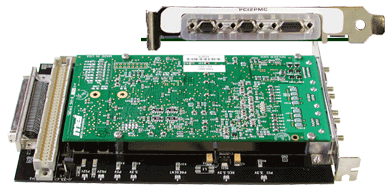

Below is a picture of a properly installed PMC card on a PCI adapter card. It can now be installed into any standard PCI slot.

PMC to CPCI Adapter Card

When mating a XMP-SynqNet-PMC card to a compatible CPCI converter card, be sure that the mezzanine connectors and stand-offs all line-up correctly. Secure the two boards with the screws provided.

PMC to CPCI Adapter Card Catalyst Enterprises, Inc. PN: 384-0040-001 www.catalyst-ent.com

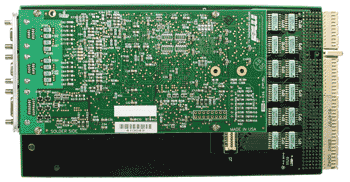

Here is a properly installed PMC on a CPCI adapter card. It can now be installed into any standard CPCI slot.

PMC to Motherboard

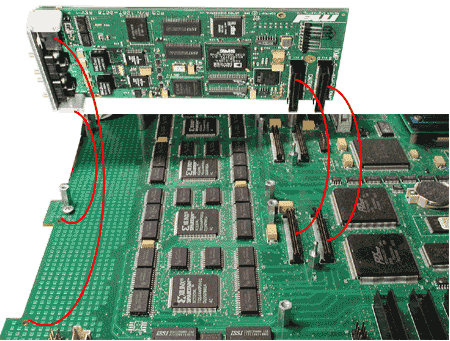

You can also install the PMC card directly onto a motherboard that has mezzanine connectors.

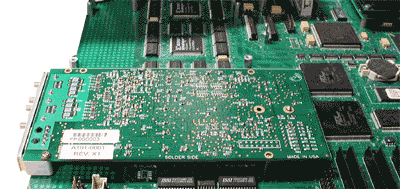

Here is a picture of a properly installed PMC card on a motherboard.
