SynqNet Sytem Wiring Examples

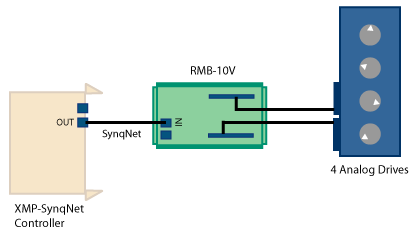

Here is an RMB-10V2-SynqNet with a SynqNet controller and a test stand with four analog motors.

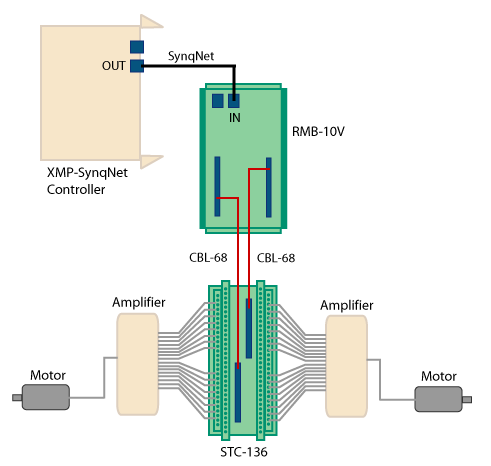

Here is an RMB-10V2-SynqNet with a SynqNet controller, STC-136, amplifiers, and two analog motors.
