Analog Inputs

There are four (4) analog inputs per RMB-10V2-SynqNet system.

Connect Analog Inputs

Use this configuration for an isolated analog sensor with no other GND connections.

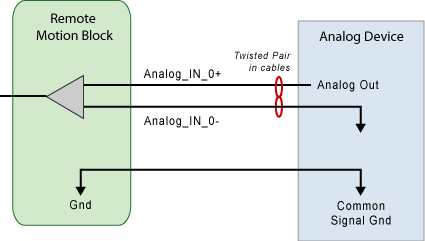

Use this configuration for an analog input that is from a source connected to signal ground, such as a general analog input (NOT an analog encoder) connected to +5V and Gnd for power.
