TSIO-8005; Potential Distribution
Potential Distribution 8ch, 24Vdc
|
|
- The potential distributor provides 8 channels and can accomodate
an additional power contact.
- The TSIO-8005 provides 8 outputs of 24Vdc that can be connected
to an external device.
- For example, if you have a setup where an external device near
the slice I/O module needs 24Vdc of power, it may be more convenient
to simply use the slice I/O module as a power source and draw
24Vdc of power from one of the channels of the TSIO-8005.
- The TSIO-8004 provides 0V and can
be used as a compliment to the TSIO-8005.
|
| Input Specification
|
| Field Power Voltage |
24Vdc |
| Contacs Current |
Max. 10A |
| Fn-Bus Power Contactor |
Yes |
| Operating Temperature |
–20 to +60°C |
| Storage Temperature |
–45 to +85°C |
| Output Specification
|
| Logic Power Dissipation |
Expansion Power Distributor |
| I/O Cables |
Max. AWG 14 |
| Weight |
65g |
| Module Size |
67mm x 12mm x 95mm
(H x W x L) |

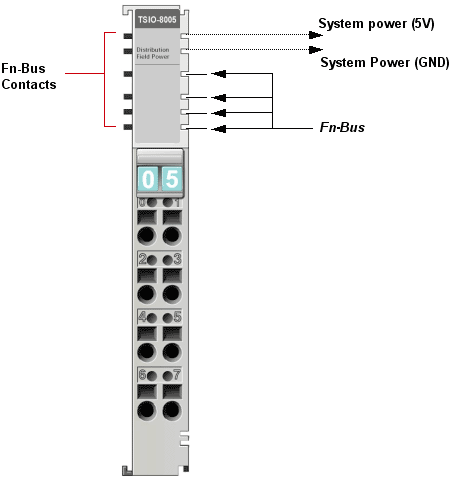

Pinouts
 |
|
Pin No.
|
Description
|
|
0
|
24Vdc
|
|
1
|
24Vdc
|
|
2
|
24Vdc
|
|
3
|
24Vdc
|
|
4
|
24Vdc
|
|
5
|
24Vdc
|
|
6
|
24Vdc
|
|
7
|
24Vdc
|
|

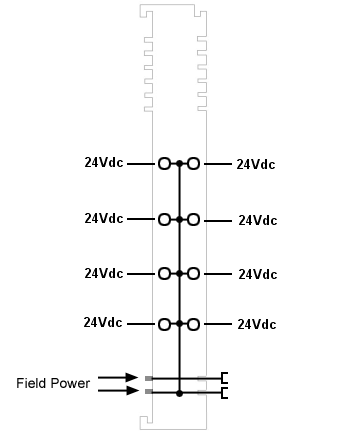

Wiring Example
|
