TSIO-6011; Analog Input

4 Channels of 0~10V, 14bit Voltage Input

  • The module has 4 Channels of voltage type analog input. It receives signal with values of 0~10V.

  • The input signal is electrically isolated and will be transmitted with a resolution of 14 bits.

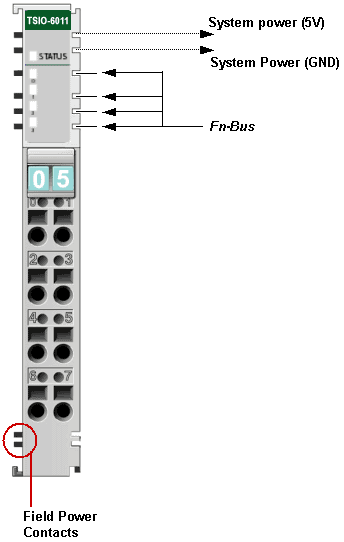

  • The module has 5 status LEDs.
    (1- network status, 4- field device status)

  • The input channels are differential inputs. The shield is connected directly to the DIN rail.





Input Specification
Inputs per module 4 Channels single-ended, non-isolated between channels
LED Indicators 4 green/red for input status
1 green/red for slice status
Resolution 14bits
0.6mV/bit
Input Current Range 0 ~ 10V
Module Error ±0.1% Full Scale @ 25ºC
±0.3% Full Scale @ 0ºC , 60ºC
Input Impedance 500K Ohm
Conversion Time 4ms / All Channel
(Time needed to convert an analog input to a digital signal. All channels are converted at the same time within 4ms.)

General Specification
ID 0x00224341
Logic Power Dissipation Max. 200mA @ 5.0Vdc
Isolation I/O to Logic: Photocoupler isolation
Isolation Voltage: 1250Vrms/Vac
Isolated from Field Power
I/O Cables Max. AWG 14
Weight 70g
Module Size 99mm x 12mm x 70mm
(H x W x L)
Environmental Requirements See Environment Requirements

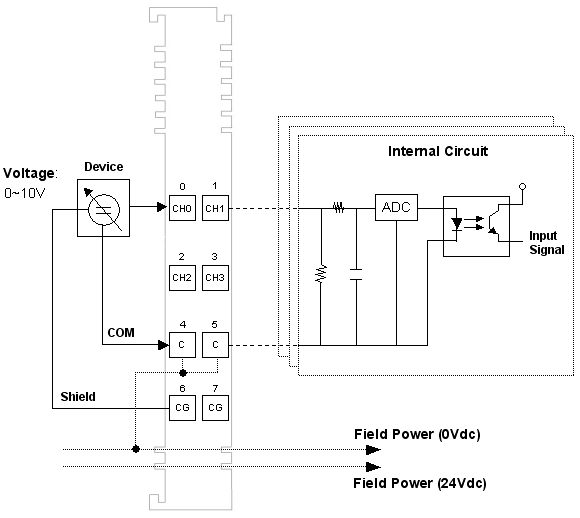

Pinouts

Pin No.
Description
0
 Input Channel 0
1
 Input Channel 1
2
 Input Channel 2
3
 Input Channel 3
4
 Input Channel Common (0V)
5
 Input Channel Common (0V)
6
 Chassis Ground/ Shield
7
 Chassis Ground/ Shield



Parameters

This slice does not support any parameters.



Memory

Memory
Access
Bits
Description
Default
0
Read
0-7
 Channel 0 Input Data Low 8 bits
1
Read
0-5
 Channel 0 Input Data High 6 bits
6-7
 Not Used
0
2
Read
0-7
 Channel 1 Input Data Low 8 bits
3
Read
0-5
 Channel 1 Input Data High 6 bits
6-7
 Not Used
0
4
Read
0-7
 Channel 2 Input Data Low 8 bits
5
Read
0-6
 Channel 2 Input Data High 6 bits
6-7
 Not Used
0
6
Read
0-7
 Channel 3 Input Data Low 8 bits
7
Read
0-5
 Channel 3 Input Data High 6 bits
6-7
 Not Used
0
8
Read
0-7

Reserved

0
9
Read
0-7
 Reserved
0



I/O Data


Input Data
(SynqNet)
Voltage
0V
2V
5V
10V
Data
0x0000
0x0CCC
0x1FFF
0x3FFF


Input Data
(CANopen)
Voltage
0V
2V
5V
10V
Data
0x0000
0x199E
0x3FFE
0x7FFE
    NOTE: The resolution of this slice is 14 bits so the lsb is not used.



Slice Status LED

State
LED
Description
Not Powered,
Not Initialized		 OFF The slice is either not powered or has not been initialized.
Normal Communication Green
 Slice to network adapter communication is operating normally.
Communication Ready Flashing Green Slice to network adapter communication is ready to be started.
Communication Fault Flashing Red

Slice to network adapter communication has a fault.
Slice Fault Red

The slice has a fault.



Channel Status LED

The TSIO-6011 has 4 Channels.

State
LED
Indicates
Nominal Green Normal Operation (Active)
