SQIO-MIXEDMODULE1: Analog Input Pinouts

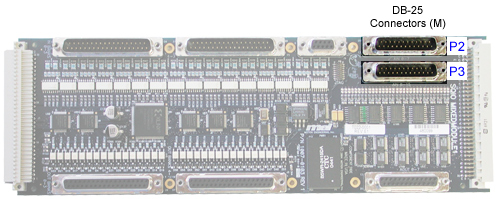

DB-25; P2

Pin
Signal
(sort by pin # )
Direction
Description
1
 AIN0+ Input Differential analog input pair
14
 AIN0– Input
15
 AIN1+ Input Differential analog input pair
3
 AIN1– Input
4
 AIN2+ Input Differential analog input pair
17
 AIN2– Input
18
 AIN3+ Input Differential analog input pair
6
 AIN3– Input
7
 AIN4+ Input Differential analog input pair
20
 AIN4– Input
21
 AIN5+ Input Differential analog input pair
9
 AIN5– Input
10
 AIN6+ Input Differential analog input pair
23
 AIN6– Input
24
 AIN7+ Input Differential analog input pair
12
 AIN7– Input
2
 ANALOG_GND_2 Ground Shield Ground
5
 ANALOG_GND_2 Ground Shield Ground
8
 ANALOG_GND_2 Ground Shield Ground
11
 ANALOG_GND_2 Ground Shield Ground
16
 ANALOG_GND_2 Ground Shield Ground
19
 ANALOG_GND_2 Ground Shield Ground
22
 ANALOG_GND_2 Ground Shield Ground
25
 ANALOG_GND_2 Ground Shield Ground



DB-25; P3

Pin
Signal
(sort by pin # )
Direction
Description
1
 AIN8+ Input Differential analog input pair
14
 AIN8– Input
15
 AIN9+ Input Differential analog input pair
3
 AIN9– Input
4
 AIN10+ Input Differential analog input pair
17
 AIN10– Input
18
 AIN11+ Input Differential analog input pair
6
 AIN11– Input
7
 AIN12+ Input Differential analog input pair
20
 AIN12– Input
21
 AIN13+ Input Differential analog input pair
9
 AIN13– Input
10
 AIN14+ Input Differential analog input pair
23
 AIN14– Input
24
 AIN15+ Input Differential analog input pair
12
 AIN15– Input
2
 ANALOG_GND_2 Ground Shield Ground
5
 ANALOG_GND_2 Ground Shield Ground
8
 ANALOG_GND_2 Ground Shield Ground
11
 ANALOG_GND_2 Ground Shield Ground
16
 ANALOG_GND_2 Ground Shield Ground
19
 ANALOG_GND_2 Ground Shield Ground
22
 ANALOG_GND_2 Ground Shield Ground
25
 ANALOG_GND_2 Ground Shield Ground
