SQIO-MIXEDMODULE1: Analog Output Pinouts

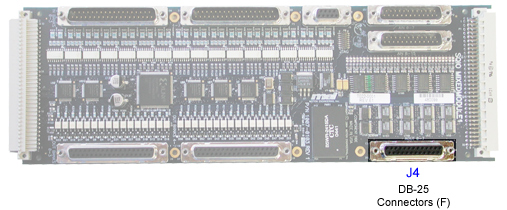

DB-25; J4

Pin
Signal
(sort by pin)
Direction
Description
1
 AOUT0+ Output Analog Output
14
 AOUT0– Output Analog Output
15
 AOUT1+ Output Analog Output
3
 AOUT1– Output Analog Output
4
 AOUT2+ Output Analog Output
17
 AOUT2– Output Analog Output
18
 AOUT3+ Output Analog Output
6
 AOUT3– Output Analog Output
7
 AOUT4+ Output Analog Output
20
 AOUT4– Output Analog Output
21
 AOUT5+ Output Analog Output
9
 AOUT5– Output Analog Output
10
 AOUT6+ Output Analog Output
23
 AOUT6– Output Analog Output
24
 AOUT7+ Output Analog Output
12
 AOUT7– Output Analog Output
2
 ANALOG_GND_1 Ground Shield Ground
5
 ANALOG_GND_1 Ground Shield Ground
8
 ANALOG_GND_1 Ground Shield Ground
11
 ANALOG_GND_1 Ground Shield Ground
13
 ANALOG_GND_1 Ground Shield Ground
16
 ANALOG_GND_1 Ground Shield Ground
19
 ANALOG_GND_1 Ground Shield Ground
22
 ANALOG_GND_1 Ground Shield Ground
25
 ANALOG_GND_1 Ground Shield Ground
