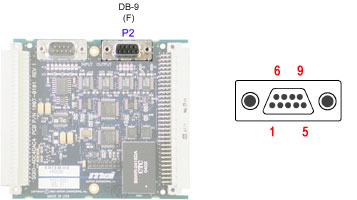

SQIO-ADC4DAC4: Output Pinouts |
||||||||||||||||||||||||||||||||||||||||||
Pin |
Signal (sort by signal ) |
Direction |
Description |
1 |
AOUT0+ | Output | Analog Output |
2 |
AOUT1+ | Output | Analog Output |
3 |
AOUT2+ | Output | Analog Output |
4 |
AOUT3+ | Output | Analog Output |
5 |
AGND | – | Analog Ground |
6 |
AOUT0– | – | Analog Ground |
7 |
AOUT1– | – | Analog Ground |
8 |
AOUT2– | – | Analog Ground |
9 |
AOUT3– | – | Analog Ground |
