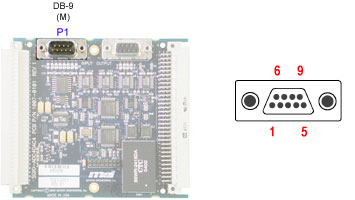

SQIO-ADC4DAC4: Input Pinouts |
||||||||||||||||||||||||||||||||||||||||||
Pin |
Signal (sort by signal) |
Direction |
Description |
1 |
AIN0+ | Input | Differential analog input |
2 |
AIN1+ | Input | Differential analog input |
3 |
AIN2+ | Input | Differential analog input |
4 |
AIN3+ | Input | Differential analog input |
5 |
AGND2 | – | Analog Ground |
6 |
AIN0– | Input | Differential analog input |
7 |
AIN1– | Input | Differential analog input |
8 |
AIN2– | Input | Differential analog input |
9 |
AIN3– | Input | Differential analog input |
