S200 Tools: Status

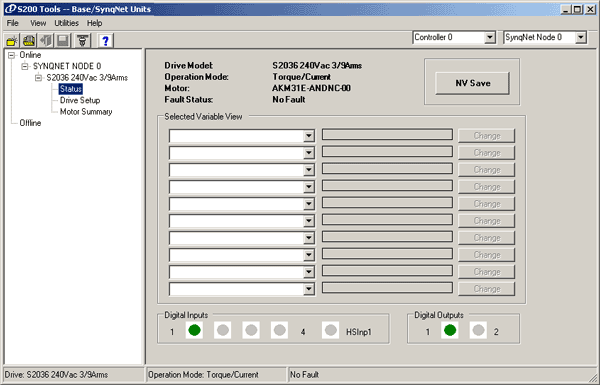

The Status menu allows you to view the status of digital Inputs and Outputs, as well as view or edit various drive variables.



Changing Parameter Values

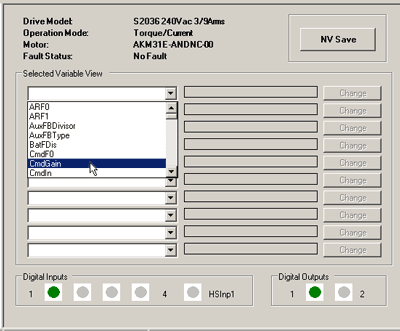

To change the value of a parameter, use the pulldown menu to select a parameter or variable.

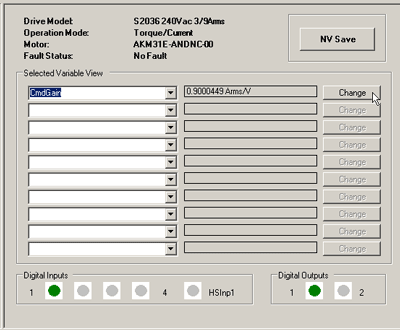

The current value is listed the right. To change the value, click the Change button.

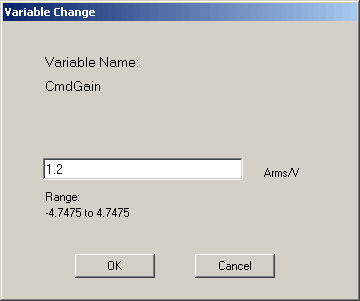

Type in a desired parameter value and click OK.
In the example below, we type in a value of 1.2 ARMS/V.

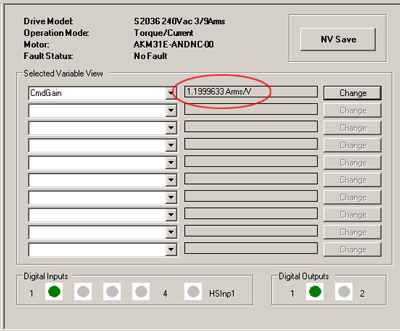

As a safety precaution, the S200 Tools automatically adjusts the value to the closest allowable value.

The new value is stored in the drive logic temporary memory.
Click the NV Save button to copy the new drive logic parameter(s) into the drive's NV permanent memory.
