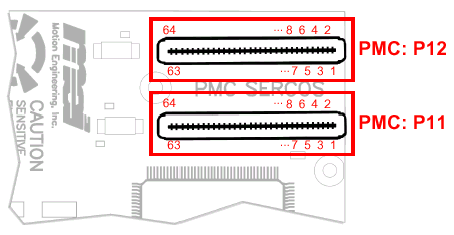

P12
|
|
Pin
#
|
Signal
Name
|
Signal
Name
|
Pin
#
|
|
2
|
TRST#
|
+12V
|
1
|
|
4
|
TDO
|
TMS
|
3
|
|
6
|
Ground
|
TDI
|
5
|
|
8
|
PCI-RSVD*
|
Ground
|
7
|
|
10
|
PCI-RSVD*
|
PCI-RSVD*
|
9
|
|
12
|
+3.3V
|
BUSMODE2#
|
11
|
|
14
|
BUSMODE3#
|
RST#
|
13
|
|
16
|
BUSMODE4#
|
+3.3V
|
15
|
|
18
|
Ground
|
PCI-RSVD*
|
17
|
|
20
|
AD[29]
|
AD[30]
|
19
|
|
22
|
AD[26]
|
Ground
|
21
|
|
24
|
+3.3V
|
AD[24]
|
23
|
|
26
|
AD[23]
|
IDSEL
|
25
|
|
28
|
AD[20]
|
+3.3V
|
27
|
|
30
|
Ground
|
AD[18]
|
29
|
|
32
|
C/BE[2]#
|
AD[16]
|
31
|
|
34
|
PMC-RSVD
|
Ground
|
33
|
|
36
|
+3.3V
|
TRDY#
|
35
|
|
38
|
STOP#
|
Ground
|
37
|
|
40
|
Ground
|
PERR#
|
39
|
|
42
|
SERR#
|
+3.3V
|
41
|
|
44
|
Ground
|
C/BE[1]#
|
43
|
|
46
|
AD[13]
|
AD[14]
|
45
|
|
48
|
AD[10]
|
Ground
|
47
|
|
50
|
+3.3V
|
AD[08]
|
49
|
|
52
|
PMC-RSVD
|
AD[07]
|
51
|
|
54
|
PMC-RSVD
|
+3.3V
|
53
|
|
56
|
Ground
|
PMC-RSVD
|
55
|
|
58
|
PMC-RSVD
|
PMC-RSVD
|
57
|
|
60
|
PMC-RSVD
|
Ground
|
59
|
|
62
|
+3.3V
|
ACK64#
|
61
|
|
64
|
PMC-RSVD
|
Ground
|
63
|
|
|
P11
|
|
Pin
#
|
Signal
Name
|
Signal
Name
|
Pin
#
|
|
2
|
-12V
|
TCK
|
1
|
|
4
|
INTA#
|
Ground
|
3
|
|
6
|
INTC#
|
INTB#
|
5
|
|
8
|
+5V
|
BUSMODE1#
|
7
|
|
10
|
PCI-RSVD*
|
INTD#
|
9
|
|
12
|
PCI-RSVD#
|
Ground
|
11
|
|
14
|
Ground
|
CLK
|
13
|
|
16
|
GNT#
|
Ground
|
15
|
|
18
|
+5V
|
REQ#
|
17
|
|
20
|
AD[31]
|
V
(I/O)
|
19
|
|
22
|
AD[27]
|
AD[28]
|
21
|
|
24
|
Ground
|
AD[25]
|
23
|
|
26
|
C/BE[3]#
|
Ground
|
25
|
|
28
|
AD[21]
|
AD[22]
|
27
|
|
30
|
+5V
|
AD[19]
|
29
|
|
32
|
AD[17]
|
V
(I/O)
|
31
|
|
34
|
Ground
|
FRAME#
|
33
|
|
36
|
IRDY#
|
Ground
|
35
|
|
38
|
+5V
|
DEVSEL#
|
37
|
|
40
|
LOCK#
|
Ground
|
39
|
|
42
|
SBO#
|
SDONE#
|
41
|
|
44
|
Ground
|
PAR
|
43
|
|
46
|
AD[15]
|
V
(I/O)
|
45
|
|
48
|
AD[11]
|
AD[12]
|
47
|
|
50
|
+5V
|
AD[09]
|
49
|
|
52
|
C/BE[0]#
|
Ground
|
51
|
|
54
|
AD[05]
|
AD[06]
|
53
|
|
56
|
Ground
|
AD[04]
|
55
|
|
58
|
AD[03]
|
V
(I/O)
|
57
|
|
60
|
AD[01]
|
AD[02]
|
59
|
|
62
|
+5V
|
AD[00]
|
61
|
|
64
|
RE064#
|
Ground
|
63
|
|
