XMP-PCI Bus

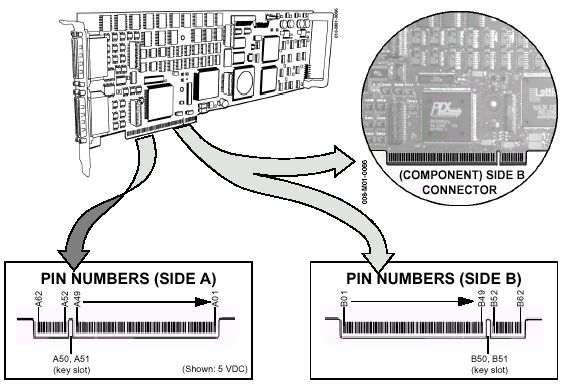

PCI buses are found in many common desktop and tower-type computer systems. The standard XMP-PCI controller features a 120-pin edge connector which plugs directly into standard 5VDC PCI bus receptacles. (Refer to figure above.) A "universal" PCI that supports 3.3V or 5V signalling is pending from MEI. Please contact MEI for availability. All motion control I/O for the XMP-PCI controller is performed via the VHDCI connectors on the rear panel of the controller. For more information on I/O, click here.

PCI Connector (Bus)

PCI bus connector (main & expansion boards)

5 V System

Universal System (5 or 3.3 V)



Side B

Side A

Side B

Side A

Pin

Function

Pin

Function

Pin

Function

Pin

Function

Comments

01B

-12V

01A

TRST#

01B

-12V

01A

TRST#

32-bit Connector Start

02B

TCK

02A

+12V

02B

TCK

02A

+12V



03B

GND

03A

TMS

03B

GND

03A

TMS



04B

TDO

04A

TDI

04B

TDO

04A

TDI



05B

+5V

05A

+5V

05B

+5V

05A

+5V



06B

+5V

06A

INTA#

06B

+5V

06A

INTA#



07B

INTB#

07A

INTC#

07B

INTB#

07A

INTC#



08B

INTD#

08A

+5V

08B

INTD#

08A

+5V



09B

PRSNT1#

09A

Reserved

09B

PRSNT1#

09A

Reserved



10B

Reserved

10A

+5V (I/O)

10B

Reserved

10A

+5V (I/O)



11B

PRSNT2#

11A

Reserved

11B

PRSNT2#

11A

Reserved



12 B

Ground

12A

Ground

12B


KEY SLOT

12A


KEY SLOT



13B

Ground

13A

Ground

13B

13A



14B

Reserved

14A

Reserved

14B

Reserved

14A

Reserved



15B

Ground

15A

RST#

15B

Ground

15A

RST#



16B

CLK

16A

+5V (I/O)

16B

CLK

16A

+5V (I/O)



17B

Ground

17A

GNT#

17B

Ground

17A

GNT#



18B

REQ#

18A

Ground

18B

REQ#

18A

Ground



19B

+5V (I/O)

19A

Reserved

19B

+V (I/O)

19A

Reserved



20B

AD[31]

20A

AD[30]

20B

AD[31]

20A

AD[30]



21B

AD[29]

21A

+3.3V

21B

AD[29]

21A

+3.3V



22B

Ground

22A

AD[28]

22B

Ground

22A

AD[28]



23B

AD[27]

23A

AD[26]

23B

AD[27]

23A

AD[26]



24B

AD[25]

24A

Ground

24B

AD[25]

24A

Ground



25B

+3.3V

25A

AD[24]

25B

+3.3V

25A

AD[24]



26B

C/BE[3]#

26A

IDSEL

26B

C/BE[3]#

26A

IDSEL



27B

AD[23]

27A

+3.3V

27B

AD[23]

27A

+3.3V



28B

Ground

28A

AD[22]

28B

Ground

28A

AD[22]



29B

AD[21]

29A

AD[20]

29B

AD[21]

29A

AD[20]



30B

AD[19]

30A

Ground

30B

AD[19]

30A

Ground



31B

+3.3V

31A

AD[18]

31B

+3.3V

31A

AD[18]



32B

AD[17]

32A

AD[16]

32B

AD[17]

32A

AD[16]



33B

C/BE[2]#

33A

+3.3V

33B

C/BE[2]#

33A

+3.3V



34B

Ground

34A

FRAME#

34B

Ground

34A

FRAME#



35B

IRDY#

35A

Ground

35B

IRDY#

35A

Ground



36B

+3.3V

36A

TRDY#

36B

+3.3V

36A

TRDY#



37B

DEVSEL#

37A

Ground

37B

DEVSEL#

37A

Ground



38B

Ground

38A

STOP#

38B

Ground

38A

STOP#



39B

LOCK#

39A

+3.3V

39B

LOCK#

39A

+3.3V



40B

PERR#

40A

SDONE

40B

PERR#

40A

SDONE



41B

+3.3V

41A

SBO#

41B

+3.3V

41A

SBO#



42B

SERR#

42A

Ground

42B

SERR#

42A

Ground



43B

+3.3V

43A

PAR

43B

+3.3V

43A

PAR



44B

C/BE[1]#

44A

AD[15]

44B

C/BE[1]#

44A

AD[15]



45B

AD[14]

45A

+3.3V

45B

AD[14]

45A

+3.3V



46B

Ground

46A

AD[13]

46B

Ground

46A

AD[13]



47B

AD[12]

47A

AD[11]

47B

AD[12]

47A

AD[11]



48B

AD[10]

48A

Ground

48B

AD[10]

48A

Ground



49B

Ground

49A

AD[09]

49B

M66EN

49A

AD[09]

66 MHz / Gnd

50B


KEY SLOT

50A


KEY SLOT

50B


KEY SLOT

50A


KEY SLOT

5 Volt Key

51B

51A

51B

51A

5 Volt Key

52B

AD[08]

52A

C/BE[0]#

52B

AD[08]

52A

C/BE[0]#



53B

AD[07]

53A

+3.3V

53B

AD[07]

53A

+3.3V



54B

+3.3V

54A

AD[06]

54B

+3.3V

54A

AD[06]



55B

AD[05]

55A

AD[04]

55B

AD[05]

55A

AD[04]



56B

AD[03]

56A

Ground

56B

AD[03]

56A

Ground



57B

Ground

57A

AD[02]

57B

Ground

57A

AD[02]



58B

AD[01]

58A

AD[00]

58B

AD[01]

58A

AD[00]



59B

+5V (I/O)

59A

+5V (I/O)

59B

+V (I/O)

59A

+5V (I/O)



60B

ACK64#

60A

REQ64#

60B

ACK64#

60A

REQ64#



61B

+5V

61A

+5V

61B

+5V

61A

+5V



62B

+5V

62A

+5V

62B

+5V

62A

+5V

32-bit Connector End
