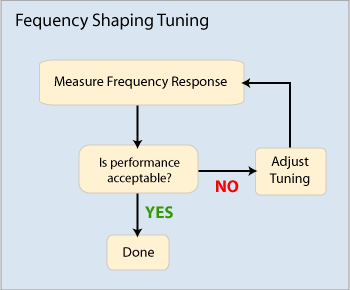

Overview of Frequency Shaping Tuning

Frequency shaping methods require that the response of the system in the frequency domain is acquired. Once the frequency response of the system is known, possible control algorithms can then be evaluated. PID is one of many control algorithms that this method supports. Frequency shaping methods not only require that an accurate response of the system and the control algorithm are available, but also that the combined response is available.

NOTE: MEI's Bode Tool is a tool for performing such simulation.
