2. Servo Performance Criteria

Error Handling and Safety

The XMP has several simple ways of detecting servo errors and how to make the appropriate changes. These are relatively simple tests that can help prevent damage to equipment. Here are simple descriptions of each type of error.

Limit Switch Configuration

A common mistake is to NOT hook up the limit switches. If your servo has a limited travel, you need limit switches. The various limit switches can be found in the Motor Summary Events tab. During servo tuning, it is easy to unknowingly use an unsafe number and have a stage runaway.

Before tuning a servo, it is recommend that you set up the error limit switch action to "Abort." This will effectively turn off the drive when an error limit is encountered.

Make sure that the polarity of the limit switch is set so that the limit switch is considered triggered if you disconnect it. This will protect the stage if there is a limit switch cable failure.

Normally the limit switch duration is set to zero. This means that if a limit switch has been met, the limit switch action (Abort) will immediately be acted upon. You can also type in a non-zero value into the field to designate that a lag of x sec must elapse before the the limit switch action is acted upon. This is sometimes useful with noisy switches. However, if you have a runaway state, you usually want action (an Abort) to be taken immediately.

NOTE: There are separate limit switch configurations for both the positive and negative direction.

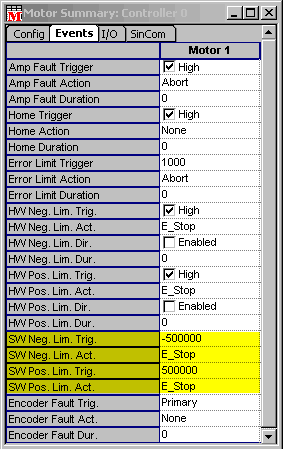

Software Limit Configuration

The Software Limit Configuration is very similar to the limit switch configuration, except that the "switch" is just a position (in counts) read by the encoder. Instead of having a polarity, the software limit has a trigger value. This is the position at which the software limit will take effect. For instance, if you want the servo to perform an E-Stop when it reaches 500,000 counts, you should set the Limit Switch Configuration to be 500,000.

NOTE: There is a separate software limit for both the positive and negative direction.

Position Error Configuration

The position error is sometimes referred to as following error. The position error limit will perform an action if the position error exceeds a preset value.

Set the value in the Error Limit Trigger. Typically you would set the position error to the smallest value that you are confident you will never see in normal operation.
Set the Error Limit Action to ABORT. If you get an error limit event, your motion is by definition uncontrolled. If you do not abort the motor (turning the drive off), you will be trying to servo with an axis that is not servoing correctly in the first place. In stepper motor configurations without encoders, set the error limit action to NONE. Without feedback, the error limit has no real meaning.

Normally the position error duration is set to 0. This means that the position error will be acted on as soon as it is detected. If the error limit duration is a non zero value, the position error will not be acted on until the position error has existed continuously for duration seconds.

Amp Enable Configuration

A common mistake when tuning a servo is thinking that you can manually turn off the amp if something goes wrong. But, most servo stages are fast enough to hurt themselves in a fraction of a second. Therefore, let the controller do its job and allow it to turn the drive off if there is a problem. That is why it is important to wire up the stage correctly from the start, otherwise the controller can't protect the stage.

Make sure that the polarity of the amp enable is set so that the amp is disabled if you disconnect the amp enable cable (does not apply for SynqNet drives). If you have an amp enable cable failure, this will make sure you detect the error and shut off the amp.

Amp Fault Action

The XMP can take action on an Amp Fault. Keep in mind that some amps indicate a fault condition when they are merely disabled. In cases like this, it is more complicated to turn on an amplifier.

Make sure that the polarity of the amp fault is set so that the amp fault is triggered if you disconnect the amp fault cable (does not apply for SynqNet drives). If you have an amp fault cable failure, this will make sure you detect the error.
Set the Amp Fault Action to ABORT. If you get an Amp Fault Event, you want to stop attempting to servo and disable the amp. In all likelyhood, the amp has disabled itself at this point, and further commanded motion has little meaning. If you do not abort the motor (turning the drive off), you will be trying to servo with an axis that isn't servoing correctly in the first place.

Normally the amp fault error duration is set to 0. This means that the amp fault error will be acted on as soon as it is detected. If the amp fault error duration is a non zero value, the amp fault error will not be acted on until the amp fault error has existed continuously for the specified duration (in seconds).

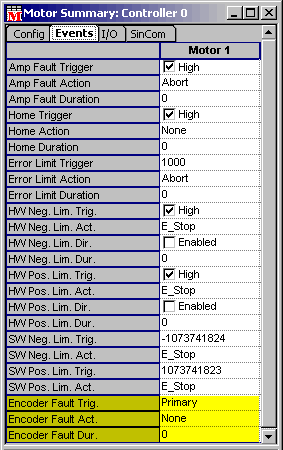

Encoder Fault Action

If you have an encoder fault, it is likely that you will get a runaway servo. The XMP has the ability to detect broken encoder wire conditions and invalid encoder states. This applies to some, but not all SynqNet drives. The XMP encoder receivers have a termination resistor that will pull the positive and negative halves of the encoder signals together if a wire breaks. The invalid state occurs when the A and B phases of the encoder change at the same time. This makes the encoder position uncertain. An Encoder Fault is the general term and can be caused by two conditions: Broken Wire and Invalid State.

Set the encoder fault action like the other errors. We recommend using an abort action because the servo feedback is an unknown when you get an encoder fault.
The trigger can be set to trigger off of an Invalid State, Broken Wire, or Absolute Encoder error. Absolute encoder errors are not covered here.
Encoder Faults cannot be cleared. The controller must be reset. An encoder fault is a serious condition, and should be looked into before continuing.
