The SqNodeMemory Utility can be used to read or write to a SynqNet node's memory. This utility is similar to VM3, except it is used to manually change fields for the node/drive instead of the controller. Command line arguments can be used to specify the controller number and client/server operation.

To start the sqNodeMemory Utility, type sqNodeMemory at the command prompt.
(ex: E:\mei\XMP\bin\WinNT>sqNodeMemory)

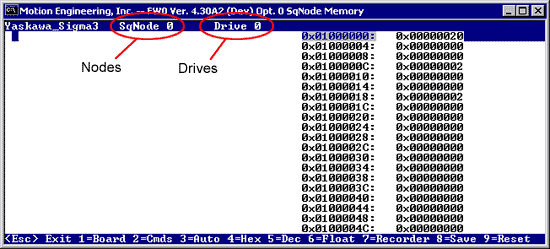

To navigate within a node's memory space, enter the desired address into the address field.

Use the ctrl+pgUp and ctrl+pgDn buttons to access the different nodes on the network.

NOTE: Some drives also allow you to access the Drive Memory space. Use the pgUp/pgDn buttons to scroll through the available drives when applicable.

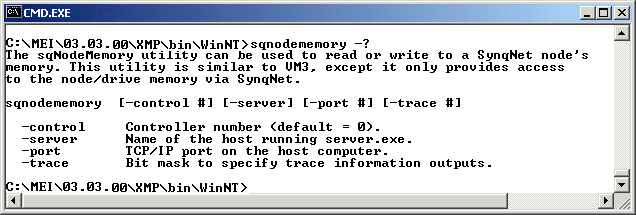

Usage

-? Help
-control # Controller number (default = 0)
-server # Name or IP address of the host running server.exe
-port # TCP/IP port on the host computer (default = 3300)
-trace # Bit mask to specify trace information outputs.



Examples

C:Mei\03.03.00\Xmp\Bin\WinNT>sqnodememory -control 1
