The sqDriveMsg Utility displays all the faults and warnings present on the specified drive.

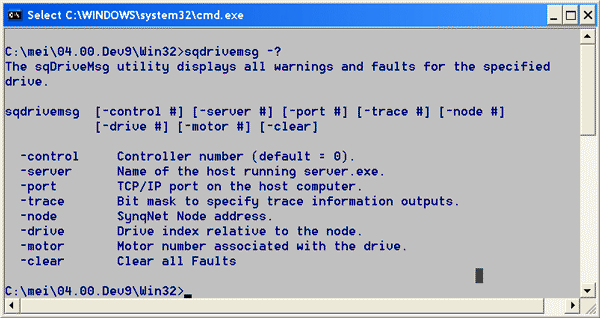

Arguments

-? Help
-control # Controller number (default = 0)
-server # Name or IP address of the host running server.exe
-port # TCP/IP port on the host computer (default = 3300)
-trace # Bit mask to specify trace information outputs.
-node # Node address on the SynqNet network (default = 0).
-drive # Index of the drive relative to the node (default = 0)
-motor # The MPI motor object mapped to the drive (default = 0)
-clear# Clear all faults



Usage


FILENAME
Show all faults and warnings
  - You can use either -node and -drive, OR just -motor to specify the desired drive interface.


Examples

To see the faults and warnings for drive 0 on node 1.
       C:Mei\03.03.00\Xmp\Bin\WinNT>sqdrivemsg -node 1
       Fault Count = 1
       Fault Read: 0x20: Invalid hall state
       Warning Count = 2
       Warning Read: 0x1: Bus Under-Voltage
       Warning Read: 0x4: Phase-Finding is required
