The sqCmd Utility sends low-level service commands to a node or drive.



Arguments

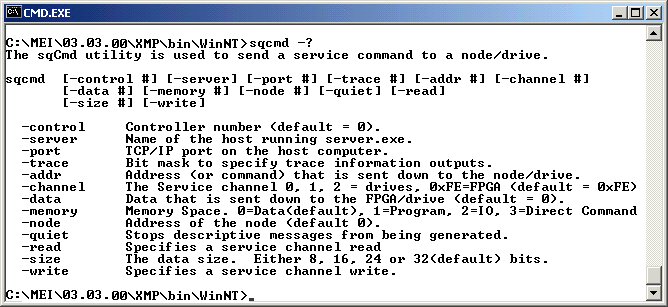

At the command line, type one of the following options:
         ex: C:\mei\03.03.00\XMP\diag\WinNT>synqCmd -server 'gemini'

-? Help
-control # Controller number (default = 0)
-server # Name or IP address of the host running server.exe
-port # TCP/IP port on the host computer (default = 3300)
-trace # Bit mask to specify trace information outputs.
-addr # The service channel address that is sent down to the FPGA/drive (default = 0).
-channel #

The Service channel (default = 0)

0, 1, 2, ...map to drive processor 0, 1, 2, ...
0xFE maps to the node logic (FPGA)
0xFF is a null channel

-data # Data that is sent down to the FPGA/drive (default = 0).
-memory #

The Memory Space.
0 - Data
1 - Program
2 - I/O
3 - Direct Command (default = 3)

-node # Node address on the SynqNet network (default = 0).
-quiet Stops descriptive messages from being generated.
-read # Specifies a service channel read.
-size # The data size. Either 8, 16, 24, or 32 bits. (default = 32)
-write # Specifies a service channel write.


Usage


FILENAME
Service Command Read x x       x x x x
Service Command Write x   x     x x x x x
General Service Command x     x         x x
Put SynqNet into Asynq. mode x       x



Examples

C:\mei\03.03.00\xmp\diag\WinNT>sqCmd -write -addr 0x1000 -data 1
