Dump/Save Panel (F8)

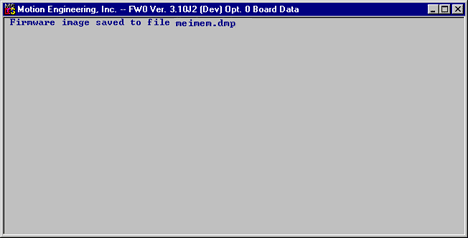

Pressing F8 dumps memory data to the file, "meimem.dmp" in the local directory. This file can be loaded later into VM3 for further inspection.

Dump VM3 Panel

Dump/Save Simulation Panel (Ctrl + F8)

Pressing Ctrl + F8 dumps memory and simulation data to the meimem.sim file in the local directory. This file can be used with Simulation Server (MPI 04.00.03 and later).

Dump VM3 Panel
