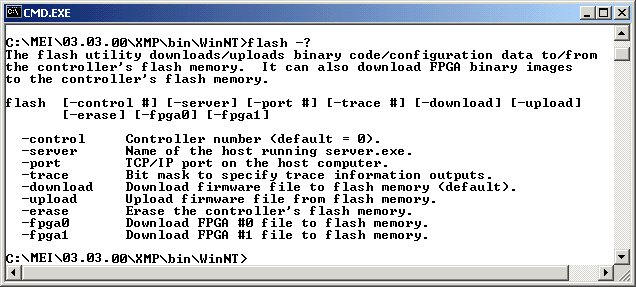

The Flash Utility loads, saves, or erases flash memory on a motion controller card. It is also used to download FPGA binary images to the controller's flash memory.



Arguments

-? Help
-control # Controller number (default = 0)
-server # Name or IP address of the host running server.exe
-port # TCP/IP port on the host computer (default = 3300)
-trace # Bit mask to specify trace information outputs.
-download Download firmware file to flash memory (default).
-upload Upload firmware file from flash memory.
-erase Erase the controller's flash memory.
-fpga0 Download FPGA #0 file to flash memory.
-fpga1 Download FPGA #1 file to flash memory.
-noReset Will not reset the controller after flashing memory with the binaries.
-noReset -default Download the default binaries to flash but DO NOT reset the controller.
-info will report on the controller after flashing memory with the new binaries.



Examples

C:Mei\03.03.00\Xmp\Bin\>flash xmp580a1.bin
C:Mei\03.03.00\Xmp\Bin\>flash -erase
C:Mei\03.03.00\Xmp\Bin\>flash -fpga0 233_9201.fpg
