Node, Cable, Motor, Drive Addressing

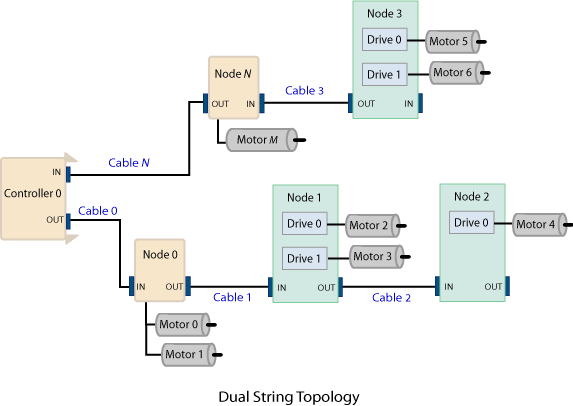

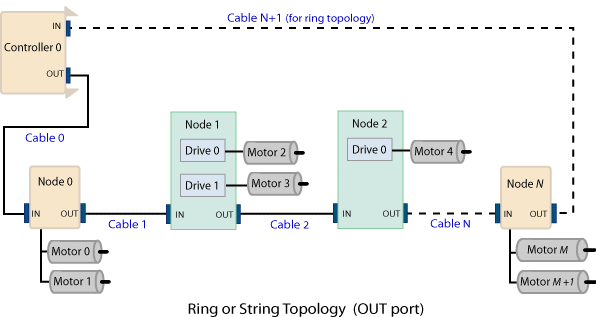

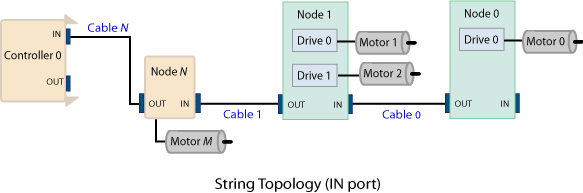

During network initialization the SynqNet nodes are discovered and identified. Each node is assigned a number (0, 1, 2, etc.). Each cable is assigned a number (0, 1, 2, etc.). Each motor (drive interface) is assigned a number (0, 1, 2, etc.). Also, each drive on a node is indexed by a number (0, 1, etc.).

SynqNet Supports:
   - up to 64 nodes
   - up to 64 motors
