MPX Software Installation

The MDK (software) can be obtained by a Kollmorgen representative. By default, all of the files are copied to the following directory: C:\Program Files\Danaher Motion\MPX. The InstallShield will install the following features and libraries:

• MPX Programming Interface
• Motion Console
• Motion Scope
• VM3
• On-line Documentation

Installation Steps

Step 1

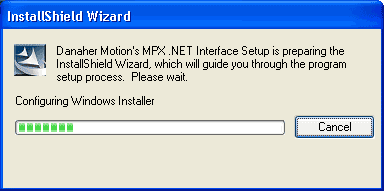

Click on the WinNTSetup.exe or Win32Setup.exe file.

Step 2

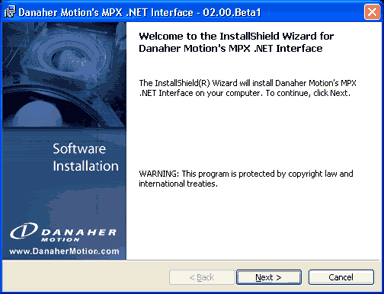

The InstallShield Wizard for Kollmorgen's MPX .NET Interface should appear. Click Next.

Step 3

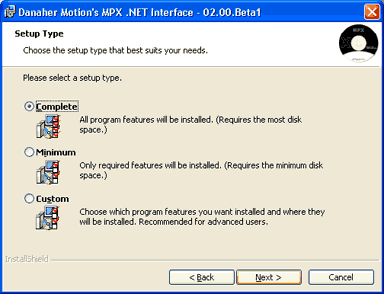

If you are installing the MPX for the first time, select "Complete" and click Next.

Step 4

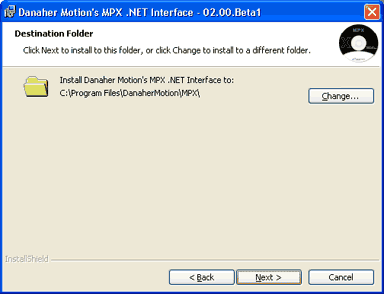

The default directory for the installation of all files and settings is C:\Program Files\Danaher Motion\MPX . We recommend that you do not change the default installation directory unless directed to do so by an applications engineer. Click Next.

Step 5

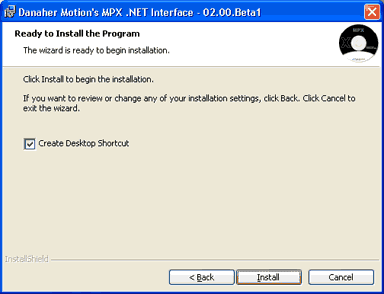

The InstallShield is now ready to install all of the files and settings. Click Install.

Step 6

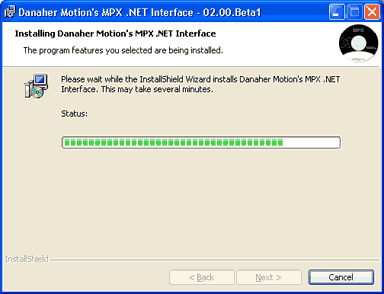

A series of windows will appear showing the progress of the installation.

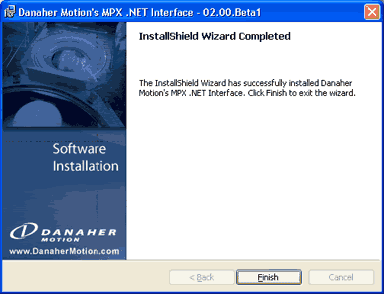

The following confirmation window will appear if the installation was successful. Click Finish to exit the InstallShield.
