Diagram of mpiMotionStart

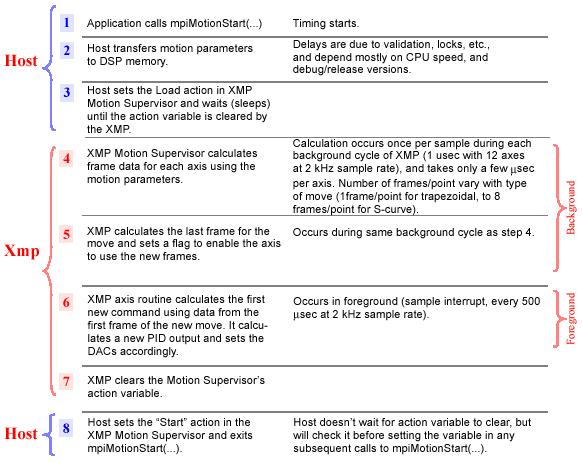

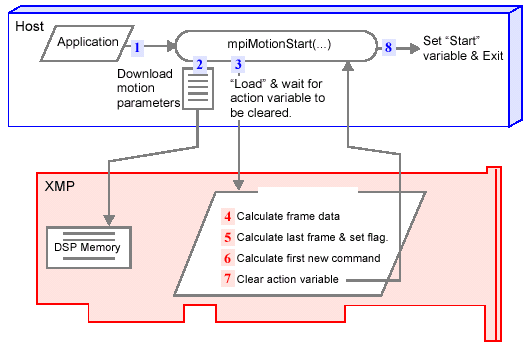

The diagram below explains how mpiMotionStart(...) executes.

Return to mpiMotionStart
