meiFlashDataSet

Declaration

long meiFlashDataSet(MEIFlash flash,
                     void     *dst,
                     void     *src,
                     long     count)

Description

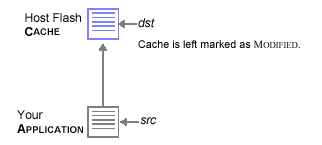

meiFlashDataSet sets (writes) count bytes of flash data memory (starting at address dst) using application memory (starting at address src). The dst pointer must point into the MEIXmpData{...} structure defined in xmp.h and be based on the firmware address (MEIXmpData *) returned by mpiControlMemory(...).

Your application cannot access Flash memory directly; instead your application will access the host-resident flash memory cache maintained by flash.

mpiControlMemory(...) returns an external pointer that points to the MEIXmpBufferData{...} structure. You cannot use this external pointer with the meiFlashDataSet method to access flash data memory.

See Also

mpiControlMemory | meiFlashDataGet
