Controller I/O Connector

HD 15 Connector Pinouts

Connector: Controller I/O
Pin
Signal
Pin
Signal



1

DOUT_0_C

9

DIN_5_AK

2

DOUT_1_E

10

XESTOP_KA

3

DIN_3_AK

11

DOUT_1_C

4

DIN_4_KA

12

DOUT_2_E

5

XESTOP_AK

13

DIN_4_AK

6

DOUT_0_E

14

DIN_5_KA

7

DOUT_2_C

15

SHIELD

8

DIN_3_KA
Shield
Enclosure GND



General Controller I/O Specifications

These specifications are valid for all eZMP-SynqNet controllers. These specifications were measured at 25°C.

1 XESTOP Input and 3 Opto Inputs
Input High Voltage (ON) Min 4.0V
Max 28.8V
Input Low Voltage (OFF) Max 0.8V
Input High Current Max 15 mA
Input Low Current Max 1 mA @ 0.8V
Input Impedence Min 2300 Ohms

3 Opto Outputs
Output Max Sink Current 50 mA
Output Low Voltage @ Io=50mA Max 1.0V
Collector Power Dissipation 150mW



Connecting to the Controller I/O

System E-Stop Input and Digital Inputs 3-5

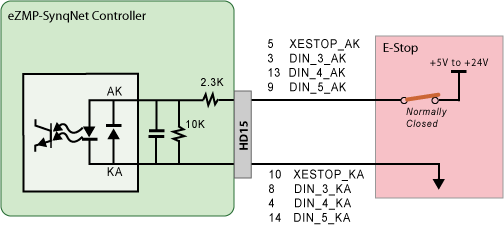

To Pull-up Logic

The E-Stop Input and Digital Inputs 3-5 (DIN) have the same pull-up logic. There are 3 Controller I/O digital inputs. The eZMP-SynqNet has dedicated I/O.

T126-0001: HD15 Connector Pinouts

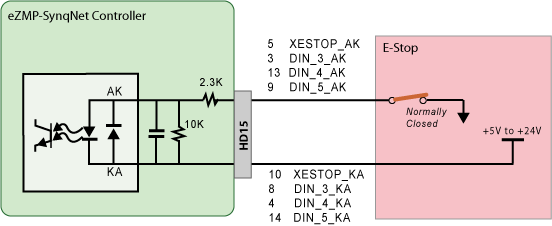

To Pull-down Logic

Connect E-Stop input to pull-down logic.

T126-0001: HD15 Connector Pinouts

pulldown



System Digital Outputs 0-2

The eZMP-SynqNet uses opto-isolated Controller I/O.

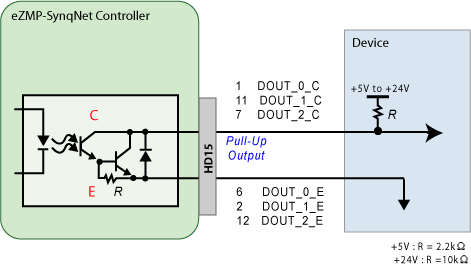

Pull-up Output Logic

T126-0001: HD15 Connector Pinouts

There are 3 Controller I/O digital outputs. The eZMP-SynqNet has dedicated I/O.

io

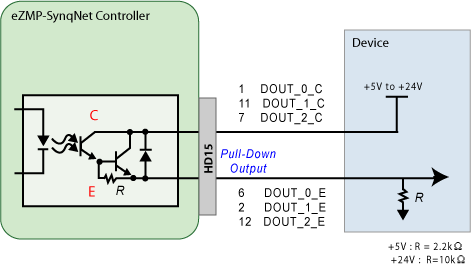

Pull-down Output Logic

T126-0001: HD15 Connector Pinouts

io



Cables and Accessories

Cable Accessory

The following cable accessory is also available: C001-0037

c001-00037

STC Accessory

Phoenix Contact offers the following STC accessory:

Phoenix Contact
PN
: 22 81 13 1
Part Type: FLKM-D15 SUB/S
Description: VARIOFACE module, with screw connection and D-Subminiature pin strip, for mounting on NS 35/7.5 or NS 32, 15-pos.

stc
