Hardware and Electrical Requirements
See Also: UL Listing and CE Marking
Hardware Specifications
| |
All eZMP Models |
| CPU Processor |
800 MHz Celeron (Default; other x86 processors available, 800MHz - 1.8GHz) |
| Motion Processor |
PowerPC 64-bit floating point, 466MHz |
| Memory |
256 MB |
| Compact Flash |
1GB |
| Operating System |
XP embedded |
| Network Interfaces |
Ethernet 10/100 Mbit (IEEE 802.3),
SynqNet 100 Mbit full duplex |
| Peripheral Interfaces |
one VGA interface (DE15),
one Serial Port (COM1, RS232),
two USB 2.0 Host (A connector) |
Electrical Specifications
| |
All eZMP Models |
| Product Certifications |
The eZMP-SynqNet is seeking UL/CE certification. See UL Listing and CE Marking for details. |
| Typical Input Power |
24Vdc |
| Input Power Range |
20 - 30Vdc |
| Typical Current |
0.8 Amps |
| Peak Current |
1.6 Amps |
Environmental Specifications
| |
Basemodel eZMP (32-axes)
PN: T126-0001 |
| Operating Temperature |
32° to 131° F (0° to 55° C) |
| Operating Altitude |
Less than 5000 feet (1500 meters) above sea level
Derate Operating Temperature by 3% for each 300m above 1500m |
| Storage Temperature |
13° to 185° F (-25° to 85° C) |
| Relative Humidity |
5% to 95% non-condensing |
| Pollution Degree |
2 |
| Shock |
3 shocks per axis (15g/11ms) |
| Vibration |
at max. 5 - 500 Hz and 2 g |

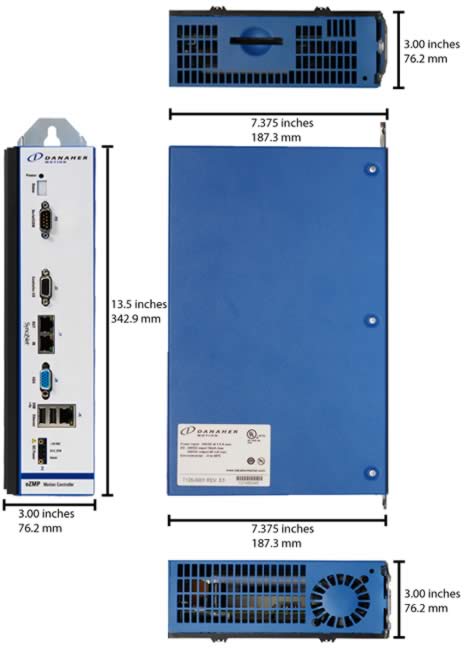

Dimensions & Weight
For more information about dimensions, see eZMP Mechanical Drawings.
| |
Basemodel eZMP (32-axes)
PN: T126-0001 |
Dimensions
(includes mounting bracket) |
13.5 inches (342.9 mm) high, 3.00 inches (76.2 mm) wide, 7.375 inches (187.3 mm) deep |
| Weight |
5.75 lbs (2.61 kg) |
|
