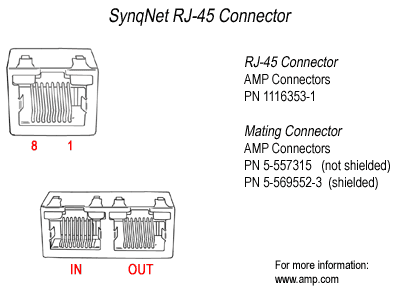

SynqNet RJ-45 Connector
|
||||||||||||||||||||||||||||||||||||||
|
Pin
|
In
|
Out
|
|
Standard pinout
(NIC=MDI) |
Crossover pinout
(HUB=MDI-X) |
|
|
1
|
Transmit + | Receive + |
|
2
|
Transmit - | Receive - |
|
3
|
Receive + | Transmit + |
|
4
|
UUPI + | UUPI + |
|
5
|
UUPI - | UUPI - |
|
6
|
Receive - | Transmit - |
|
7
|
UUP2 + | UUP2 + |
|
8
|
UUP2 - | UUP2 - |
|
-
|
SHLD | SHLD |
UUP1 and UUP2 are "unused pair" 1 and 2. When using a standard CAT5 cable, these pairs are connected to the two unused pairs in the 4 pair (8 wire) cable.
NOTE: Standard CAT5 design practice is to terminate these pairs on the PCB to reduce noise. When using a 2 pair cable, these pins are left unconnected in the cable.
MEI offers the following cable accessory:
- C007-0001 (1.2m)
- C007-0002 (3m)
- C007-0003 (10m)
