eXMP-SynqNet QS Guide Windows XP Embedded

User Accounts

The eXMP XP Embedded image (rev 1.1 and higher) has two user accounts:

       Automatic Login Account (default)
       User Name: Administrator
       Password: exmp

       Backup Account
       User Name: mei
       Password: exmp

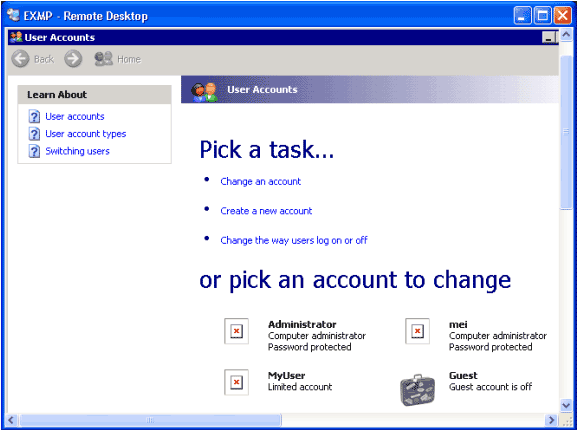

You can add more accounts using the Control Panel > User Accounts > Create New Account:

Be sure to select the Computer Administrator account type. Then select the new user account and create a password for the account. XP embedded requires passwords for all accounts.

WARNING! You will NOT be able to login to an account via Remote Desktop if the account does NOT have a password.

The Administrator account supports automatic logon at boot time. This makes it possible to operate the eXMP as a standalone controller without having to logon from Remote Desktop. If you change the Administrator account, automatic logon will not work. But, there is a work-around by modifying the registry. For more information, see the Microsoft website.
