eXMP-SynqNet QS Guide Windows XP Embedded

Host-side Remote Desktop Connection

To connect to an eXMP running Windows XP Embedded from a host PC, use Microsoft’s “Remote Desktop Connection” application, which comes with Windows XP. If you are not using Windows XP, then you will need to download the Remote Desktop Connection software from Microsoft (click here) and install it on your host PC.

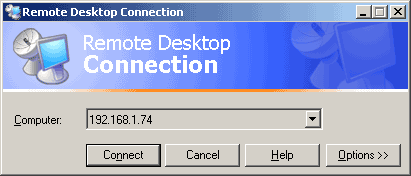

Run the Remote Desktop Connection program (Programs > Accessories > Communications). Enter the computer name or IP address for the eXMP (default = 192.168.1.74) and select Connect:

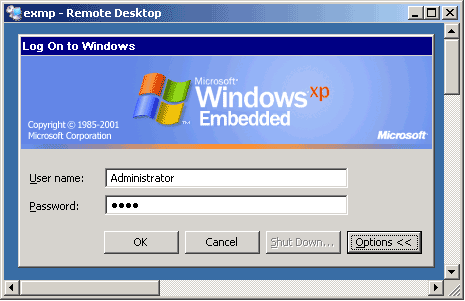

After a few seconds, the Host will connect to the eXMP (Target) and the Remote Desktop will show the Windows XP desktop on the eXMP. You will need to login:

       User Name: Administrator
       Password: exmp

From the Remote Desktop, you can operate the eXMP. The desktop is similar to a normal Windows XP workstation. In general, you will be able to run any Windows application on the eXMP. Applications and performance may be limited by the available compact flash memory space, memory, CPU speed, and network connection.

The Remote Desktop Connection has several Options that can be configured to optimize the feature set and performance. For example, the login can be automated under the General tab.

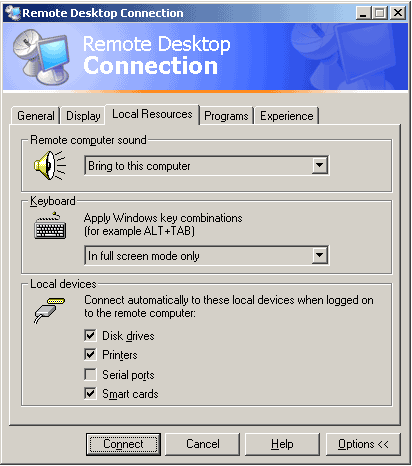

Selecting the "Disk drives" option (Local Resources > Local devices) will allow the eXMP to access the Host’s disk drives. This feature is very useful for transferring files between the Host PC and the eXMP.
