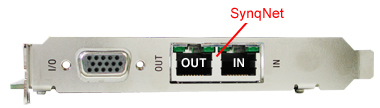

ZMP-SynqNet-PCI:

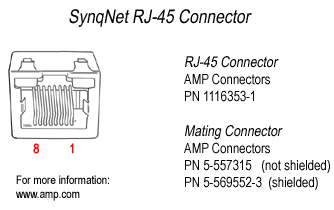

RJ-45 Connector



Pin
Out
In
Color
Crossover pinout
(HUB=MDI-X)
Standard pinout
(NIC=MDI)
100BaseT
Cable
1
Receive + Transmit + orange/white
2
Receive - Transmit - orange
3
Transmit + Receive + green/white
4
UUP1 + UUP1 + blue
5
UUP1 - UUP1 - blue/white
6
Transmit - Receive - green
7
UUP2 + UUP2 + brown/white
8
UUP2 - UUP2 - brown
-
SHLD SHLD

UUP1 and UUP2 are "unused pair" 1 and 2. When using a standard CAT5 cable, these pairs are connected to the two unused pairs in the 4 pair (8 wire) cable.

NOTE: Standard CAT5 design practice is to terminate these pairs on the PCB to reduce noise. When using a 2 pair cable, these pins are left unconnected in the cable.



Cable Accessories

There are two types of RJ-45 Cables:

  • RJ-45 to RJ-45
  • RJ-45 to Micro D

Depending on the type of SynqNet controller and SynqNet Motion Block being connected, one of the following two type

RJ-45 to RJ-45

See Variations of SynqNet Cables

Micro D to RJ-45

See Variations of SynqNet Cables
