Quick Start Guide ZMP-SynqNet Controller

Install Controller

CPCI-3U

Compact PCI (CPCI) utilizes a card-type computer chassis, having a multi-pin backplane. The main advantage is smaller sizing and simplified access to electronics. The installation of the CPCI-3U is described below.

ZMP-SynqNet-CPCI-3U PN: T127-0001

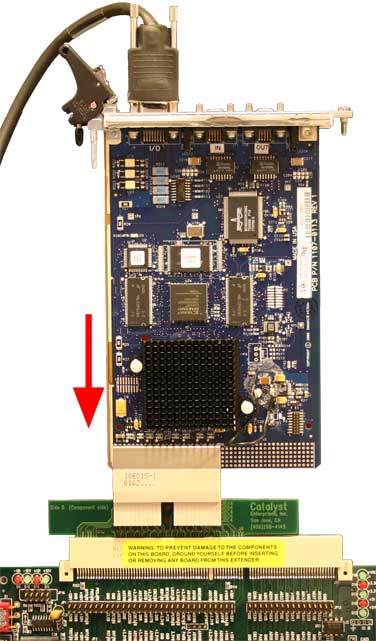

Install PCB into the host machine

Push the backplane bus connector at J1 into the mating connector on the host machine.
