Quick
Start Guide
XMP-SynqNet Controller |
PCI
The standard XMP-SynqNet-PCI motion controller has a "universal" PCI interface, which operates in either 3.3V or 5V signaling backplanes. The 120-pin edge connector plugs into the host PCI bus slot. All motion control I/O is through the RJ-45 connectors on the rear panel.
There are currently two types of XMP-SynqNet-PCI controllers:
 |
XMP-SynqNet-PCI-RJ
PN: T014-0002
UL Certification: File# E254128
(see note)
|
 |

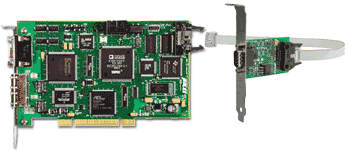

XMP-SynqNet-PCI-RJ-CAN
PN: T014-0001
UL Certification: File# E254128
(see note)
|
CAUTION
This hardware is for use only with compatible UL listed personal computers that have Installation Instructions detailing user installation of card cage accessories.

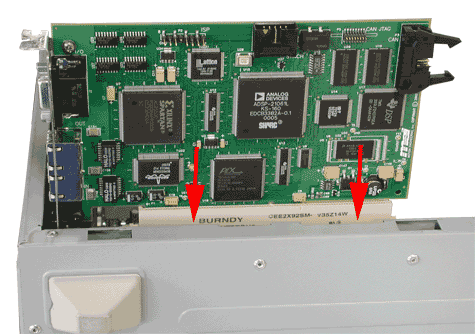

Install PCB into the host machine
Push the 120-pin edge connector
into the mating connector on the host machine.

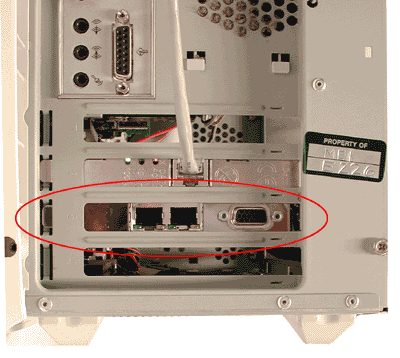

Below is a photo of an installed XMP-SynqNet-PCI-RJ-CAN
controller in a standard PCI slot on a CPU.
