QMP-SynqNet-CPCI-3U:

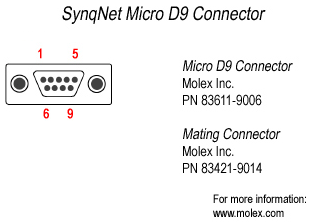

Micro D9 Connector

Pin	In	Out
	Standard pinout (NIC=MDI)	Crossover pinout (HUB=MDI-X)
1	Transmit +	Receive +
2	UUPI +	UUPI +
3	SHLD*	SHLD*
4	UUP2 +	UUP2 +
5	Receive +	Transmit +
6	Transmit –	Receive –
7	UUPI –	UUPI –
8	UUP2 –	UUP2 –
9	Receive –	Transmit –
* Pin 3 on SynqNet nodes are "No Connect."

There are two types of Micro-D Cables:

Depending on the type of SynqNet controller and SynqNet Motion Block being connected, one of the following two types of cables will be used.

	Micro D9 to Micro D9 PN: C005-0002 See Variations of SynqNet Cables
	Micro D9 to RJ-45 PN: C006-0001 See Variations of SynqNet Cables
