RMB-10V2-SynqNet Housing: DIN Rail Panel Mounting Base

RMB-10V2-SynqNet Housing:
DIN Rail Panel Mounting Base

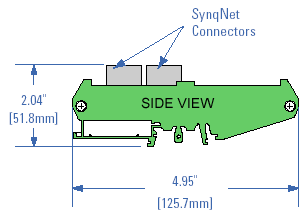

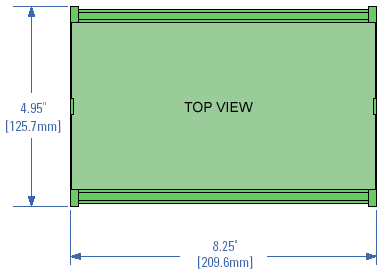

RMB-10V2-SynqNet modules have been designed to use a standard Phoenix Contact DIN rail panel mounting base (raft). Although the width of the housing must be designed to hold a PCB whose width is 108mm (4.25in) and length is 208mm (8.2in). The dimensions of the housing are shown in the drawings below.

Phoenix Contact

Phoenix Contact Inc. – http://www.phoenixcon.com

PN	Description
29 06 49 0	Left-hand side plate with foot and PE contact
29 59 49 2	UM 108-PROFIL, profile pc board base, 108mm narrow module. Plastic Extrusion.
29 59 68 3	Right-hand side plate with foot
29 59 46 3	Optional intermediate foot (only for a long raft)
