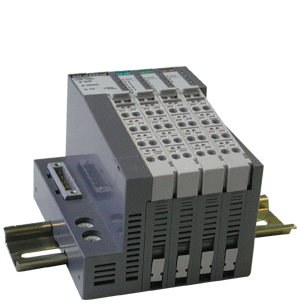

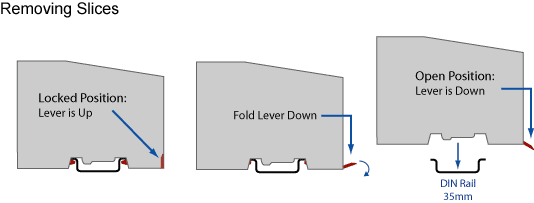

Adding/Removing SLICE I/O

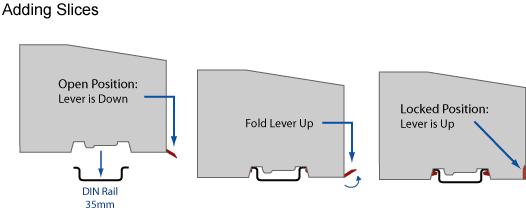

All Slices utilize a standard 35mm DIN-rail mounting specification.

WARNING!!
Do NOT remove a slice from the SynqNet network adaptor while powered. If a slice is removed while powered, the internal communication within the node will fail and the node will NOT be able to recover. A controller reset or network reset will NOT clear the error. At present, the only way to recover is to power cycle the node and then re-initialize the SynqNet network.
