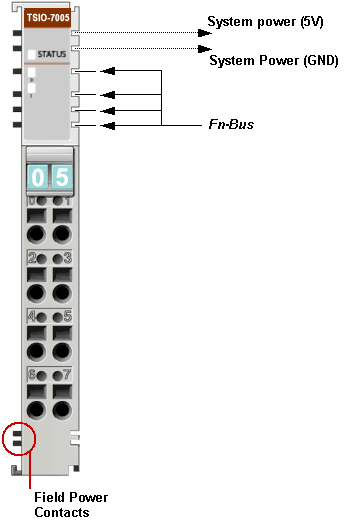

TSIO-7005; Analog Output

2 Channels of 0~5V, 12bit Voltage Output

  • The module is 2 channels voltage type analog output. It creates a standardized signal of 0~5V.

  • The module has 3 status LEDs. (1- network status, 2- field device status)

  • The power is supplied to the process level with a resolution of 12 bits and is electrically isolated.





Output Specification
Outputs per module 2 Channels single-ended, non-isolated
LED Indicators 2 green/red for output status
1 green/red for slice status
Resolution 12 bits
4.8mV/bit
Output Voltage Range -10 ~ 10Vdc
Module Error ±0.1% Full Scale @ 25ºC
±0.3% Full Scale @ 0ºC , 60ºC
Load Resistance Min. 5K Ohm
Conversion Time 2ms / All Channel
(Time needed to convert an analog input to a digital signal. All channels are converted at the same time within 2ms.)

General Specification
ID 0x00304181
Logic Power Dissipation Max. 250mA @ 5.0Vdc
Isolation I/O to Logic: Photocoupler isolation
Isolation Voltage: 1250Vrms/Vac
Isolated from Field Power
I/O Cables Max. AWG 14
Weight 70g
Module Size 99mm x 12mm x 70mm
(H x W x L)
Environmental Requirements See Environment Requirements

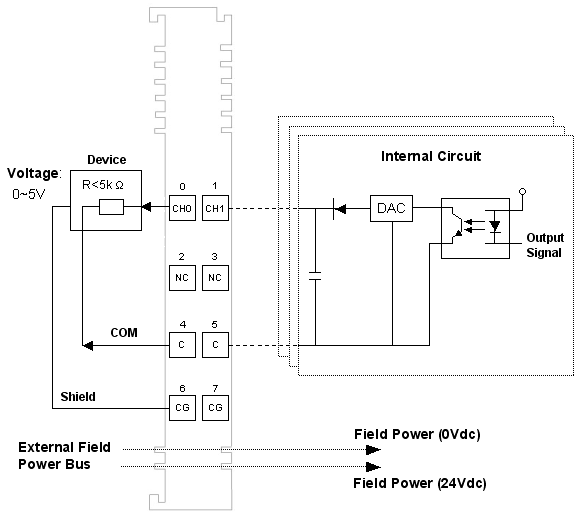

Pinouts

Pin No.
Description
0
 Output Channel 0
1
 Output Channel 1
2
 Normally Closed
3
 Normally Closed
4
 Output Channel Common (0V)
5
 Output Channel Common (0V)
6
 Chassis Ground/ Shield
7
 Chassis Ground/ Shield

Parameters

Parameter
Access
Bits
Description
Default
0
Read
and
Write

0-1

Fault Action for Channel 0:

00: Fault Value
01: Hold Last State
10: Low Limit
11: High Limit

0
(Fault Value)
2-3

Fault Action for Channel 1:

00: Fault Value
01: Hold Last State
10: Low Limit
11: High Limit

0
(Fault Value)
4-7
 Reserved
0
1
Read
and
Write
0-7
 Reserved
0
2
Read
and
Write
0-7
 Channel 0 Fault Value Low Byte
0
3
Read
and
Write
0-3
 Channel 0 Fault Value High Byte
0
4-7
 Reserved
0
4
Read
and
Write
0-7
 Channel 1 Fault Value Low Byte
0
5
Read
and
Write
0-3
 Channel 1 Fault Value High Byte
0
4-7
 Reserved
0



Memory

Memory
Access
Bits
Description
Default
0
Read
0-7
 Channel 0 Output Data Low 8 bits
1
Read
0-3
 Channel 0 Output Data High 4 bits
4-7
 Not Used
0
2
Read
0-7
 Channel 1 Output Data Low 8 bits
3
Read
0-3
 Channel 1 Output Data High 4 bits
4-7
 Not Used
0
4
Read
0-7
 Reserved
0
5
Read
0-7
 Reserved
0
6
Read
and
Write
0-7

Fault Action (Same as parameter 0)

0
7
Read
and
Write
0-7

Reserved

0
8
Read
and
Write
0-7
 Channel 0 Fault Value Low Byte
(Same as parameter 2)
0
9
Read
and
Write
0-7
 Channel 0 Fault Value High Byte
(Same as parameter 3)
0
10
Read
and
Write
0-7
 Channel 1 Fault Value Low Byte
(Same as parameter 4)
0
11
Read
and
Write
0-7
 Channel 1 Fault Value High Byte
(Same as parameter 5)
0



I/O Data


Output Data
(SynqNet)
Voltage
0V
2V
4V
5V
Data
0x0000
0x0666
0x0CCC
0x0FFF


Output Data
(CANopen)
Voltage
0V
2V
4V
5V
Data
0x0000
0x3330
0x6660
0x7FF8
    NOTE: The resolution of this slice is 12 bits so the 3 lsb are not used.



Slice Status LED

State
LED
Description
Not Powered,
Not Initialized		 OFF The slice is either not powered or has not been initialized.
Normal Communication Green
 Slice to network adapter communication is operating normally.
Communication Ready Flashing Green Slice to network adapter communication is ready to be started.
Communication Fault Flashing Red

Slice to network adapter communication has a fault.
Slice Fault Red

The slice has a fault.



Channel Status LED

The TSIO-7005 has 2 Channels.

State
LED
Indicates
Nominal Green Normal Operation (Active)
Channel Fault Red Channel Open
