TSIO-7003; Analog Output

2 Channels of 0~10V, 12bit Voltage Output

  • The module has 2 channels of voltage type analog output. It creates a standardized signal of 0~10V.

  • The power is supplied to the process level with a resolution of 12 bits and is electrically isolated.

  • The module has 3 status LEDs.
    (1- network status, 2- field device status)





Output Specification
Outputs per module 2 Channels single-ended, non-isolated
LED Indicators 2 green/red for output status
1 green/red for slice status
Resolution 12 bits
2.4mV/bit
Output Voltage Range 0 ~ 10V
Module Error ±0.1% Full Scale @ 25ºC
±0.3% Full Scale @ 0ºC , 60ºC
Load Resistance Min. 5K Ohm
Conversion Time 2ms / 1 channel
(Time needed to convert an analog input to a digital signal.)

General Specification
ID 0x002E4181
Logic Power Dissipation Max. 250mA @ 5.0Vdc
Isolation I/O to Logic: Photocoupler isolation
Isolation Voltage: 1250Vrms/Vac
Field Power: Non Connected
Field Power
 Not Connected
I/O Cables Max. AWG 14
Weight 70g
Module Size 99mm x 12mm x 70mm
(H x W x L)
Environmental Requirements See Environment Requirements

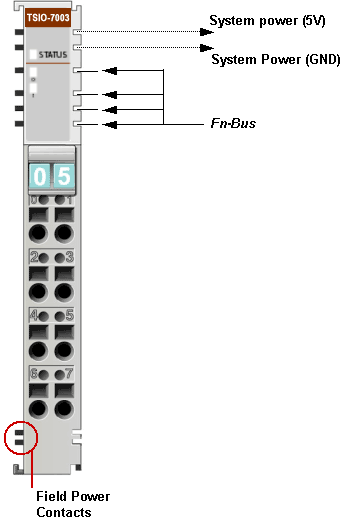

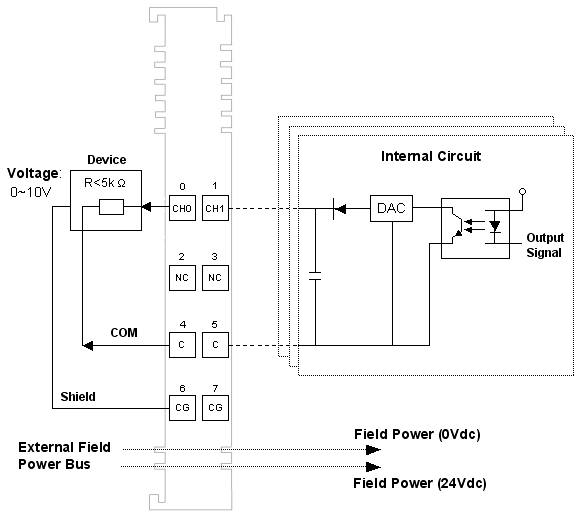

Pinouts

Pin No.
Description
0
 Output Channel 0
1
 Output Channel 1
2
 Normally Closed
3
 Normally Closed
4
 Output Channel Common (0V)
5
 Output Channel Common (0V)
6
 Chassis Ground/ Shield
7
 Chassis Ground/ Shield



Parameters

Parameter
Access
Bits
Description
Default
0
Read
and
Write

0-1

Fault Action for Channel 0:

00: Fault Value
01: Hold Last State
10: Low Limit
11:High Limit

0
(Fault Value)
2-3

Fault Action for Channel 1:

00: Fault Value
01: Hold Last State
10: Low Limit
11:High Limit

0
(Fault Value)
4-7
 Reserved
0
1
Read
and
Write
0-7
 Reserved
0
2
Read
and
Write
0-7
 Channel 0 Fault Value Low Byte
0
3
Read
and
Write
0-3
 Channel 0 Fault Value High Byte
0
4-7
 Reserved
0
4
Read
and
Write
0-7
 Channel 1 Fault Value Low Byte
0
5
Read
and
Write
0-3
 Channel 1 Fault Value High Byte
0
4-7
 Reserved
0



Memory

Memory
Access
Bits
Description
Default
0
Read
0-7
 Channel 0 Output Data Low 8 bits
1
Read
0-3
 Channel 0 Output Data High 4 bits
4-7
 Not Used
0
2
Read
0-7
 Channel 1 Output Data Low 8 bits
3
Read
0-3
 Channel 1 Output Data High 4 bits
4-7
 Not Used
0
4
Read
0-7
 Reserved
0
5
Read
0-7
 Reserved
0
6
Read
and
Write
0-7

Fault Action (Same as parameter 0)

0
7
Read
and
Write
0-7

Reserved

0
8
Read
and
Write
0-7
 Channel 0 Fault Value Low Byte
(Same as parameter 2)
0
9
Read
and
Write
0-7
 Channel 0 Fault Value High Byte
(Same as parameter 3)
0
10
Read
and
Write
0-7
 Channel 1 Fault Value Low Byte
(Same as parameter 4)
0
11
Read
and
Write
0-7
 Channel 1 Fault Value High Byte
(Same as parameter 5)
0



I/O Data


Output Data
(SynqNet)
Voltage
0V
2V
5V
10V
Data
0x0000
0x0333
0x07FF
0x0FFF


Output Data
(CANopen)
Voltage
0V
2V
5V
10V
Data
0x0000
0x1998
0x3FF8
0x7FF8
    NOTE: The resolution of this slice is 12 bits so the 3 lsb are not used.



Slice Status LED

State
LED
Description
Not Powered,
Not Initialized		 OFF The slice is either not powered or has not been initialized.
Normal Communication Green
 Slice to network adapter communication is operating normally.
Communication Ready Flashing Green Slice to network adapter communication is ready to be started.
Communication Fault Flashing Red

Slice to network adapter communication has a fault.
Slice Fault Red

The slice has a fault.



Channel Status LED

The TSIO-7003 has 2 Channels.

State
LED
Indicates
Signal OFF Green Normal Operation (Active)
