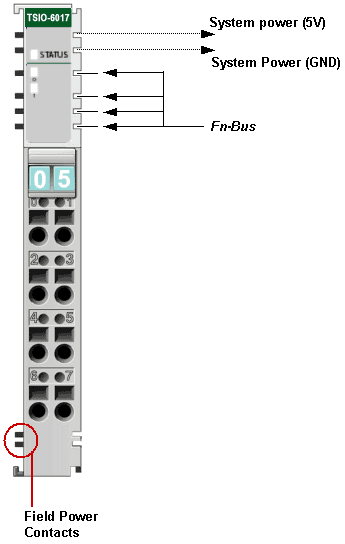

TSIO-6017; Analog Input

2 Channels of PT100, JPT100 per digit RTD Input

  • The module allows the direct connection of a PT resistor sensor.

  • The module has 3 status LEDs.
    (1- network status, 2- field device status)

  • The connection of 2 or 3-wire sensor is possible. The default is 3-wire.

  • RTD - Resistance Temperature Detectors.





Input Specification
Inputs per module 2 Channels single-ended, non-isolated between channels
LED Indicators 2 green/red for input status
1 green/red for slice status
Sensor Types PT100, PT200, PT500, PT1000, PT50, JPT100, JPT200, JPT500, JPT1000, NI100, NI200, NI500, NI1000, NI120, CU10, Resistance 100mΩ, Resistance 10mΩ, Resistance 20mΩ
Resolution Dependant upon the sensor type.
See the Sensor Type Data table.
Module Error ±0.1% Full Scale @ 25ºC
±0.3% Full Scale @ 0ºC , 60ºC
Conversion Time 200ms / All Channel
(Time needed to convert an analog input to a digital signal. All channels are converted at the same time within 200ms.)
Diagnostic Over Range (Burn-Out)

General Specification
ID 0x00284141
Logic Power Dissipation Max. 120mA @ 5.0Vdc
Isolation I/O to Logic: Photocoupler isolation
Isolation Voltage: 1250Vrms/Vac
Field Power: No isolation
Connection 2- or 3-wire
I/O Cables Max. AWG 14
Weight 70g
Module Size 99mm x 12mm x 70mm
(H x W x L)
Environmental Requirements See Environment Requirements

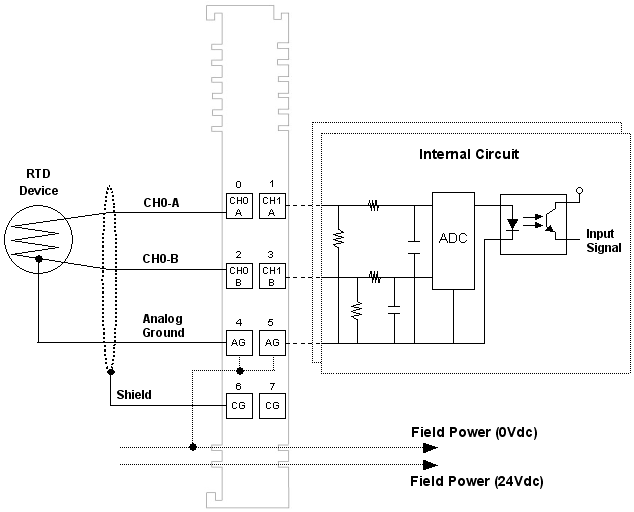

Pinouts

Pin No.
Description
0
 Input Channel 0-A
1
 Input Channel 1-A
2
 Input Channel 0-B
3
 Input Channel 1-B
4
 Analog Ground
5
 Analog Ground
6
 Shield
7
 Shield



Parameters

Parameter
Access
Bits
Description
Default
0
Read
and
Write
0-7

The selection Sensor type

0x00:PT100, 0.00385, -200~850°C, 0.1°C /count 0x01:PT200, 0.00385, -200~850°C, 0.1°C/count 0x02:PT500, 0.00385, -200~850°C, 0.1°C/count 0x03:PT1000, 0.00385, -200~350°C, 0.1°C/count 0x04:PT50, 0.00385, -200~850°C, 0.1°C/count 0x10:JPT100, 0.003916, -200~640°C, 0.1°C/count 0x11:JPT200, 0.003916, -200~640°C, 0.1°C/count 0x12:JPT500, 0.003916, -200~640°C, 0.1°C/count 0x13:JPT1000, 0.003916, -200~350°C, 0.1°C/count 0x20:NI100, 0.00618, -60~250°C, 0.1°C/count 0x21:NI200, 0.00618, -60~250°C, 0.1°C/count 0x22:NI500, 0.00618, -60~250°C, 0.1°C/count 0x23:NI1000, 0.00618, -60~180°C, 0.1°C/count 0x30:NI120, 0.00672, -80~250°C, 0.1°C/count 0x40:CU10, 0.00427, -200~260°C, 0.1°C/count 0x80:Resistance Input, 1~2000Ω, 100mΩ /1count 0x81: Resistance Input, 1~327Ω, 10mΩ/1count 0x82: Resistance Input, 1~620Ω, 20mΩ/1count Others: Reserved

0: PT100
1
Read
and
Write
0

Temperature Type
0: Celsius(°C )
1: Fahrenheit(°F )

0: Celsius
(°C )
1-3
 Reserved
0
4

Filter Type
0: Normal Filter
1: Enhanced Filter

0: Normal Filter
5-7
 Reserved
0



Memory

Memory
Access
Bits
Description
Default
0
Read
0-7
 Channel 0 Input Data Low 8 bits
1
Read
0-6
 Channel 0 Input Data High 7 bits
7
 Sign Bit
0
2
Read
0-7
 Channel 1 Input Data Low 8 bits
3
Read
0-6
 Channel 1 Input Data High 7 bits
7
 Sign Bit
0
4
Read
and
Write
0-7
 Sensor Type (same as parameter 0)
0
5
Read
and
Write
0-7
 Temperature Type (same as parameter 1)
0
6
Read
0-1

Alarm Status Bit for individual channels:
 Bit 0 corresponds to input channel 0
Bit 01 corresponds to input channel 1

When set(1), the input signal is below the input channel’s minimum range or above the input channel’s maximum range.

And Input Data will be 0x8000(-32678)
2-7
 Reserved
0
7
Read
0-5
 Reserved



I/O Data


Input Data
(SynqNet)
Resistance
Alarm
0Ω
500Ω
1000Ω
1500Ω
2000Ω
Data
0xE000
0x0000
0x1388
0x2710
0x3A98
0x4E20



Slice Status LED

State
LED
Description
Not Powered,
Not Initialized		 OFF The slice is either not powered or has not been initialized.
Normal Communication Green
 Slice to network adapter communication is operating normally.
Communication Ready Flashing Green Slice to network adapter communication is ready to be started.
Communication Fault Flashing Red

Slice to network adapter communication has a fault.
Slice Fault Red

The slice has a fault.



Channel Status LED

The TSIO-6017 has 2 Channels.

State
LED
Indicates
Nominal Green Normal Operation (Active)
Channel Fault Red Over range



Sensor Type Data

Sensor Type
Degree
Counts
Resolution
Resistance 100mΩ 1 ~ 2000Ω 10 ~ 20000 100mΩ/count
Resistance 10mΩ 1 ~ 327Ω 10 ~ 3270 10mΩ/count
Resistance 20mΩ 1 ~ 620Ω 10 ~ 6200 20mΩ/count
PT100, 0.00385 -200 ~ 850ºC -2000 ~ 8500 0.1ºC or 0.1ºF/count
PT200, 0.00385 -200 ~ 850ºC -2000 ~ 8500 0.1ºC or 0.1ºF/count
PT500, 0.00385 -200 ~ 850ºC -2000 ~ 8500 0.1ºC or 0.1ºF/count
PT1000, 0.00385 -200 ~ 350ºC -2000 ~ 3500 0.1ºC or 0.1ºF/count
PT50, 0.00385 200 ~ 850ºC -2000 ~ 8500 0.1ºC or 0.1ºF/count
JPT100, 0.003916 -200 ~ 640ºC -2000 ~ 6400 0.1ºC or 0.1ºF/count
JPT200, 0.003916 -200 ~ 640ºC -2000 ~ 6400 0.1ºC or 0.1ºF/count
JPT500, 0.003916 -200 ~ 640ºC -2000 ~ 6400 0.1ºC or 0.1ºF/count
JPT1000, 0.003916 -200 ~ 350ºC -2000 ~ 3500 0.1ºC or 0.1ºF/count
NI100, 0.00618 -60 ~ 250ºC -600 ~ 2500 0.1ºC or 0.1ºF/count
NI200, 0.00618 -60 ~ 250ºC -600 ~ 2500 0.1ºC or 0.1ºF/count
NI500, 0.00618 -60 ~ 250ºC -600 ~ 2500 0.1ºC or 0.1ºF/count
NI1000, 0.00618 -60 ~ 180ºC -600 ~ 1800 0.1ºC or 0.1ºF/count
NI120, 0.00672 -80 ~ 250ºC -800 ~ 2500 0.1ºC or 0.1ºF/count
CU10, 0.00427 -200 ~ 260ºC -2000 ~ 2600 0.1ºC or 0.1ºF/count
