TSIO-6006; Analog Input

4 Channels of 4~20mA, 12bit Current Input

  • The module has 4 Channels of current type analog input. It receives signal with values of 4~20mA.

  • The input signal is electrically isolated and will be transmitted with a resolution of 12 bits.

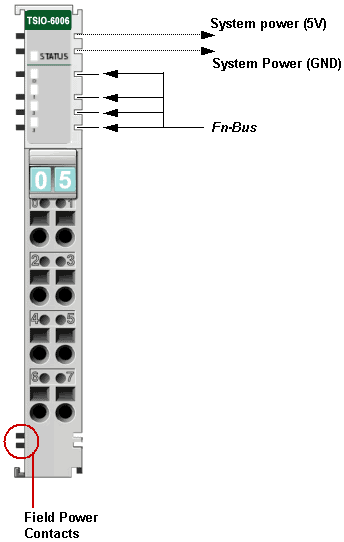

  • The module has 5 status LEDs.
    (1- network status, 4- field device status)

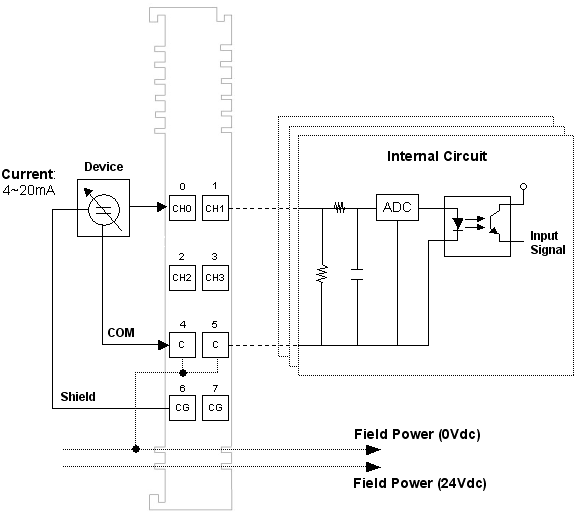

  • The input channels are differential inputs. The shield is connected directly to the DIN rail.





Input Specification
Inputs per module 4 channels single-ended, non-isolated between channels
LED Indicators 4 green/red for input status
1 green/red for slice status
Resolution 12bits: 3.9µA/bit
Input Current Range 4 ~ 20mA
Module Error ±0.1% Full Scale @ 25ºC
±0.3% Full Scale @ 0ºC , 60ºC
Input Impedance 120 Ohm
Conversion Time 4ms / All channel
(Time needed to convert an analog input to a digital signal. All channels are converted at the same time within 4ms.)
Diagnostic Under Voltage

General Specification
ID 0x001D4341
Logic Power Dissipation Max. 200mA @ 5.0Vdc
Isolation I/O to Logic: Photocoupler isolation
Isolation Voltage: 1250Vrms/Vac
Isolated from Field Power
I/O Cables Max. AWG 14
Weight 70g
Module Size 99mm x 12mm x 70mm
(H x W x L)
Environmental Requirements See Environment Requirements





Pinouts

Pin No.
Description
0
 Input Channel 0
1
 Input Channel 1
2
 Input Channel 2
3
 Input Channel 3
4
 Input Channel Common (0V)
5
 Input Channel Common (0V)
6
 Chassis Ground/ Shield
7
 Chassis Ground/ Shield



Parameters

This slice does not support any parameters.



Memory

Memory
Access
Bits
Description
Default
0
Read
0-7
 Channel 0 Input Data Low 8 bits
1
Read
0-3
 Channel 0 Input Data High 4 bits
4-7
 Not Used
0
2
Read
0-7
 Channel 1 Input Data Low 8 bits
3
Read
0-3
 Channel 1 Input Data High 4 bits
4-7
 Not Used
0
4
Read
0-7
 Channel 2 Input Data Low 8 bits
5
Read
0-3
 Channel 2 Input Data High 8 bits
4-7
 Not Used
0
6
Read
0-7
 Channel 3 Input Data Low 8 bits
7
Read
0-3
 Channel 3 Input Data High 4 bits
Read
4-7
 Not Used
0
8
Read

0-3

Alarm Status Bit for individual channels:
Bit 00 corresponds to input channel 0
Bit 01 corresponds to input channel 1
and so on.

When set (1), the input signal is below the input channel’s minimum range (3mA). And Input Data will be 0x8000(-32678)
4-7
 Reserved
0
9
Read
0-7
 Reserved
0



I/O Data


Input Data
(SynqNet)
Current
Fault
4mA
5mA
10mA
20mA
Data
0x8000
0x0000
0x00FF
0x05FF
0x0FFF


Input Data
(CANopen)
Current
Fault
4mA
5mA
10mA
20mA
Data
0x0000
0x0000
0x07F8
0x2FF8
0x7FF8
    NOTE: The resolution of this slice is 12 bits so the 3 lsb are not used.

Slice Status LED

State
LED
Description
Not Powered,
Not Initialized		 OFF The slice is either not powered or has not been initialized.
Normal Communication Green
 Slice to network adapter communication is operating normally.
Communication Ready Flashing Green Slice to network adapter communication is ready to be started.
Communication Fault Flashing Red

Slice to network adapter communication has a fault.
Slice Fault Red

The slice has a fault.



Channel Status LED

The TSIO-6006 has 4 Channels.

State
LED
Indicates
Nominal Green Normal Operation (Active)
Channel Fault Red Under Voltage
