TSIO-5002; Digital Output

2 Channels of 15~132Vac/0.5A Triac Output

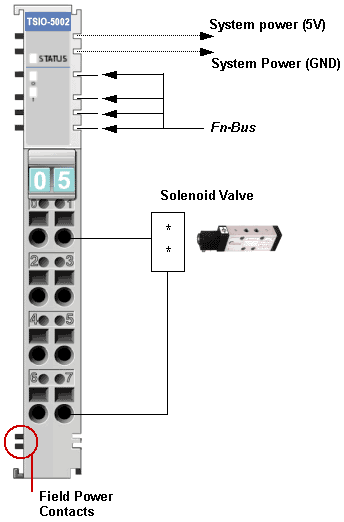

  • The module has 2 Channels of Triac type output for 15~132Vac/0.5A.

  • The connected load is switched via the digital output from the control system.

  • The module has 3 status LEDs.
    (1- network status, 2- field device status)

  • Attention: The TSIO-8002 (Field Power Isolator) must be used for operation with 110Vac.





Output Specification
Outputs per module 2 channels
LED Indicators 2 green for output status
1 green/red for slice status
Rated Load Voltage Range 15 ~ 132Vac
Output Current 0.05 ~ 0.5A
Frequency Range 47 ~ 63Hz
Surge Current 40A (16mS) / 4A (30 S)
Output Signal Delay OFF to ON: 0.3ms Max.
ON to OFF: 1/2 Cycle + 0.3ms Max.
ON-state Voltage Drop Max. 1.3 Vrms
OFF-state Leakage Current

Max. 1.5mA


General Specification
ID 0x000C0081
Logic Power Dissipation Max. 35mA @ 5.0Vdc
Isolation Isolation Voltage: Tested to 1250Vrms or 2121Vdc for 1s between User Power and System Power.
Field Power: No isolation
Field Power
(Internal Power Bus)		 Supply Voltage: 120Vac nominal
Voltage Range: 15 ~ 132Vac
I/O Cables Max. AWG 14
Weight 70g
Module Size 99mm x 12mm x 70mm
(H x W x L)
Environmental Requirements See Environment Requirements

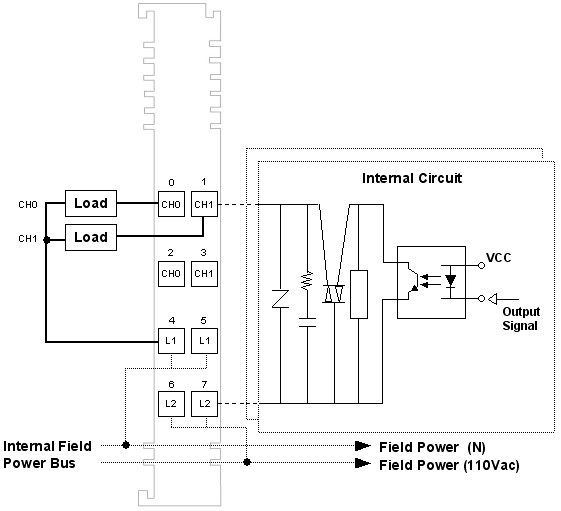

Pinouts

Pin No.
Description
0
 Output Channel 0
1
 Output Channel 1
2
 Output Channel 0
3
 Output Channel 1
4
 L1 Output Field Power (110Vac)
5
 L1 Output Field Power (110Vac)
6
 L2 Output Field Power (110Vac)
7
 L2 Output Field Power (110Vac)

Parameters

Parameter
Access
Bits
Description
Default
0
Read
and
Write
0-1
 Fault Action (channels 0 to 1)
0: Fault Value (see parameter 1)
1: Hold Last State
0
(Fault Value)
2-7
 Reserved
0
1
Read
and
Write
0-1
 Fault Value (channels 0 to 1)
0: OFF
1: ON
0
(OFF)
2-7
 Reserved
0

See Also: Slice Parameters



Memory

This slice does not support any memory registers.



I/O Data


Output Data
Bit No.
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Byte 0
Not Used
CH1
CH0



Slice Status LED

State
LED
Description
Not Powered,
Not Initialized		 OFF The slice is either not powered or has not been initialized.
Normal Communication Green
 Slice to network adapter communication is operating normally.
Communication Ready Flashing Green Slice to network adapter communication is ready to be started.
Communication Fault Flashing Red

Slice to network adapter communication has a fault.
Slice Fault Red

The slice has a fault.



Channel Status LED

The TSIO-5002 has 2 Channels.

State
LED
Indicates
Signal OFF OFF Normal Operation (Active)
Signal ON Green
 Normal Operation (Inactive)
