TSIO-5001; Digital Output
2 Channels of 220Vac/2A, 24Vdc/2A Relay Output
|
|

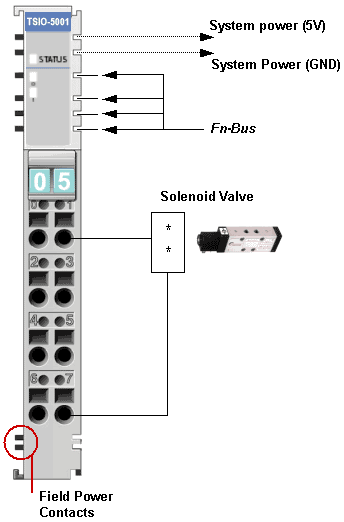

- The module has 2 Channels of relay output.
- The connected load is switched via the digital output (relay
contacts) from the control system.
- All outputs are electronically short-circuit protected.
- The module has 3 status LEDs.
(1- network status, 2- field device status)
- Attention: The TSIO-8002 (Field Power Isolator) must be used
for operation with 220Vac.
|
| Output Specification
|
| Outputs per module |
2 channels |
| LED Indicators |
2 green for output status
1 green/red for slice status |
| Relay Output |
Single Pole, Single Throw (SPST) |
Output Voltage Range
(load dependent) |
5 ~ 28.8Vdc @ 2.0A resistive
48Vdc @ 0.8A resistive
110Vdc @ 0.3A resistive
220Vac @ 2.0A resistive |
Output Current Rating
(at rated power) |
2A @ 5 ~ 28.8Vdc
0.8A @ 48Vdc
0.5A @ 110Vdc
2A @ 250Vac |
| Minimum Load |
100uA, 100mVdc / channel |
| ON-state Voltage Drop |
0.5V @ 2.0A, resistive load, 24Vdc
Max. |
| OFF-state Leakage Current |
Max. 1.5mA |
| Output Signal Delay |
OFF to ON: 10ms Max.
ON to OFF: 10ms Max. |
| Initial Contact Resistance |
30mΩ |
| Expected Relay Contact Life |
Resistive Load: 300K cycles
Inductive Load: 100K cycles
|
| General Specification |
| ID |
0x000B0081 |
| Logic Power Dissipation |
Max. 65mA @ 5.0Vdc |
| Isolation |
Isolation Voltage: Tested
to 1250Vrms
Field Power: No isolation |
Field Power
(Internal Power Bus) |
Supply Voltage: 24Vdc nominal
Voltage Range: 10 ~ 28.8Vdc |
| I/O Cables |
Max. AWG 14 |
| Weight |
70g |
| Module Size |
99mm x 12mm x 70mm
(H x W x L) |
| Environmental Requirements |
See Environment
Requirements |

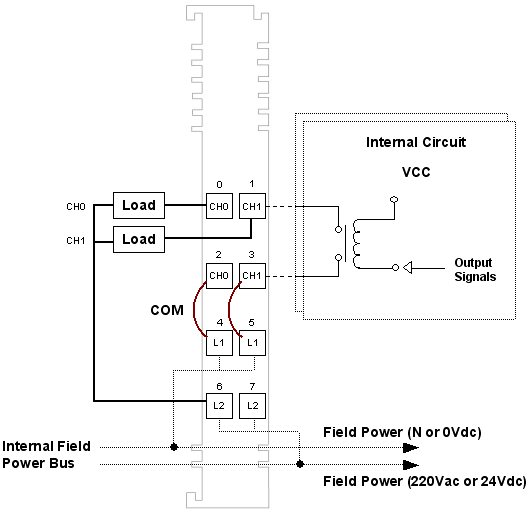

Pinouts
 |
|
Pin No.
|
Description
|
|
0
|
Relay Output Channel 0_A |
|
1
|
Relay Output Channel 1_A |
|
2
|
Relay Output Channel 0_B |
|
3
|
Relay Output Channel 1_B |
|
4
|
L1 / N / Field Ground (0Vdc) |
|
5
|
L1 / N / Field Ground (0Vdc)
|
|
6
|
L2 Output Field Power (24Vdc
/ 220Vac) |
|
7
|
L2 Output Field Power (24Vdc
/ 220Vac) |
|
Parameters
Parameter |
Access |
Bits |
Description |
Default |
0
|
Read
and
Write
|
0-1 |
Fault Action (channels 0 to 1)
0: Fault Value (see parameter 1)
1: Hold Last State |
0
(Fault Value) |
2-7 |
Reserved |
0 |
1
|
Read
and
Write
|
0-1 |
Fault Value (channels 0 to 1)
0: OFF
1: ON |
0
(OFF) |
2-7 |
Reserved |
0
|
See Also: Slice Parameters
Memory
This slice does not support any memory registers.
I/O Data
| |
Output Data |
Bit No. |
Bit 7 |
Bit 6 |
Bit 5 |
Bit 4 |
Bit 3 |
Bit 2 |
Bit 1 |
Bit 0 |
Byte 0 |
Not Used |
CH1 |
CH0 |
|
Slice Status LED
State |
LED |
Description |
Not Powered,
Not Initialized |
OFF |
The slice is either not powered or has not been initialized. |
| Normal Communication |
Green
|
Slice to network adapter communication is operating normally. |
| Communication Ready |
Flashing Green |
Slice to network adapter communication is ready to be started. |
| Communication Fault |
Flashing Red |
Slice to network adapter communication has a fault. |
| Slice Fault |
Red |
The slice has a fault. |
Channel Status LED
The TSIO-5001 has 2 Channels.
|
State
|
LED
|
Indicates
|
| Signal OFF |
OFF |
Normal Operation (Active) |
| Signal ON |
Green
|
Normal Operation (Inactive) |
|
