TSIO-4009; Digital Output
4 Channels of 24Vdc/0.5A Diagnostics Sinking Output
|
|
- The module has 4 Channels of sink type output for 24Vdc/0.5A.
- As a diagnostic feature this node has a feedback path that monitors
the status of each of the outputs.
- The connected load is switched via the digital output from the
control system.
- All outputs are electronically short-circuit protected.
- The module has 5 status LEDs.
(1- network status, 4- field device status)
- Each output is electrically isolated from the controller by the
use of a photocoupler.
|
| Output Specification
|
| Outputs per module |
4 channels non-isolated, sink type |
| LED Indicators |
4 green/red for output
status
1 green/red for slice status |
| Operating Frequency |
DC to 50Khz |
| ON-state Voltage Range |
24Vdc nominal
11 ~ 28.8Vdc |
| OFF-state Voltage Drop |
Max 0.3Vdc, RDS(ON) @
25ºC : 250m Ohm / Max. 400m Ohm |
| ON-state Current |
Min. 1mA / channel |
| OFF-state Leakage Current |
Max. 50uA |
| Output Signal Delay |
OFF to ON: 0.3ms Max.
ON to OFF: 0.3ms Max. |
| Output Current Rating |
Max. 0.5A per output,
Max. 2.0A per common |
| Output Device |
VNN1NV04 from ST Microelectronics |
| Diagnostic Function |
Over Temperature Fault
Detection |
Protection
|
Over Temperature Shutdown: Min 150ºC/Typical 175ºC
Over Current Limit: 1.7A Min.
Short Circuit Protection: 6.5A / 4 channels
Voltage Clamp: Min. 40V
ESD Protection for Output Pin: 16.5KV
|
| Surge Current |
1A for 10ms, repeatable every 3 seconds
|
| General Specification |
| ID |
0x370000C1 |
| Logic Power Dissipation |
Max. 35mA @ 5.0Vdc |
| Isolation |
I/O to Logic: Photocoupler
isolation
Isolation Voltage: 1250Vrms/Vac
Field Power: No isolation |
Field Power
(Internal Power Bus) |
Supply Voltage: 24Vdc nominal
Voltage Range: 11 ~ 28.8Vdc
Power Dissipation: 5mA @ 28.8Vdc / channel |
| I/O Cables |
Max. AWG 14 |
| Weight |
70g |
| Module Size |
99mm x 12mm x 70mm
(H x W x L) |
| Environmental Requirements |
See Environment
Requirements |

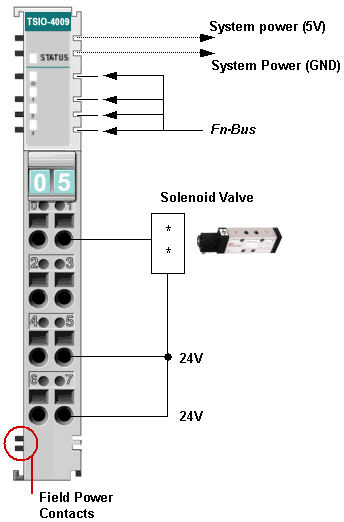

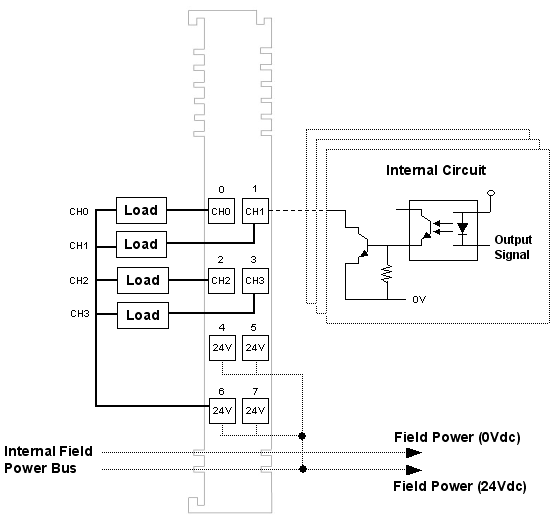

Pinouts
 |
|
Pin No.
|
Description
|
|
0
|
Out 0, Output Channel 0 |
|
1
|
Out 1, Output Channel 1 |
|
2
|
Out 2, Output Channel 2 |
|
3
|
Out 3, Output Channel 3 |
|
4
|
Output Field Power (+24Vdc) |
|
5
|
Output Field Power (+24Vdc) |
|
6
|
Output Field Power (+24Vdc) |
|
7
|
Output Field Power (+24Vdc) |
|
Parameters
Parameter |
Access |
Bits |
Description |
Default |
0
|
Read
and
Write
|
0-3 |
Fault Action (channels 0 to 7)
0: Fault Value (see parameter 2)
1: Hold Last State |
0
(Fault Value) |
4-7 |
Reserved |
0 |
1
|
Read
and
Write
|
0-3 |
Fault Value (channels 0 to 7)
0: OFF
1: ON |
0
(Fault Value) |
4-7 |
Reserved |
0
|
See Also: Slice Parameters
Memory
This slice does not support any memory registers.
I/O Data
| |
Input Data
(Over Temperature Detected) |
Bit No. |
Bit 7 |
Bit 6 |
Bit 5 |
Bit 4 |
Bit 3 |
Bit 2 |
Bit 1 |
Bit 0 |
Byte 0 |
Not Used |
CH3 |
CH2 |
CH1 |
CH0 |
|
| |
|
|
| |
Output Data |
Bit No. |
Bit 7 |
Bit 6 |
Bit 5 |
Bit 4 |
Bit 3 |
Bit 2 |
Bit 1 |
Bit 0 |
Byte 0 |
Not Used |
CH3 |
CH2 |
CH1 |
CH0 |
|
Slice Status LED
State |
LED |
Description |
Not Powered,
Not Initialized |
OFF |
The slice is either not powered or has not been initialized. |
| Normal Communication |
Green
|
Slice to network adapter communication is operating normally. |
| Communication Ready |
Flashing Green |
Slice to network adapter communication is ready to be started. |
| Communication Fault |
Flashing Red |
Slice to network adapter communication has a fault. |
| Slice Fault |
Red |
The slice has a fault. |
Channel Status LED
The TSIO-4009 has 4 Channels. These LEDs are an indication of the Field Power.
State |
LED |
Indicates |
| Signal OFF |
OFF |
Normal Operation (Active) |
| Signal ON |
Green
|
Normal Operation (Inactive) |
| Channel Fault |
Red
|
- No Power, switches are ON
- Over Current Limit
- Short Circuit
- Over Temperature Limit
- Field Power Off |
| Channel Fault |
Flashing Red
|
- Power ON, switches are OFF
|
|
