TSIO-4006; Digital Output

8 Channels of 24Vdc/0.5A Sourcing Output

  • The module has 8 Channels of source type output for 24Vdc/0.5A.

  • The connected load is switched via the digital output from the control system.

  • All outputs are electronically short-circuit protected.

  • The module has 9 status LEDs.
    (1- network status, 8- field device status)

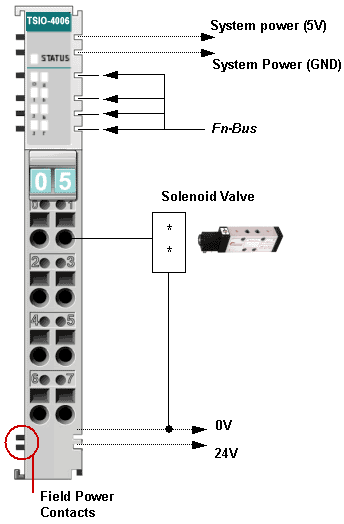

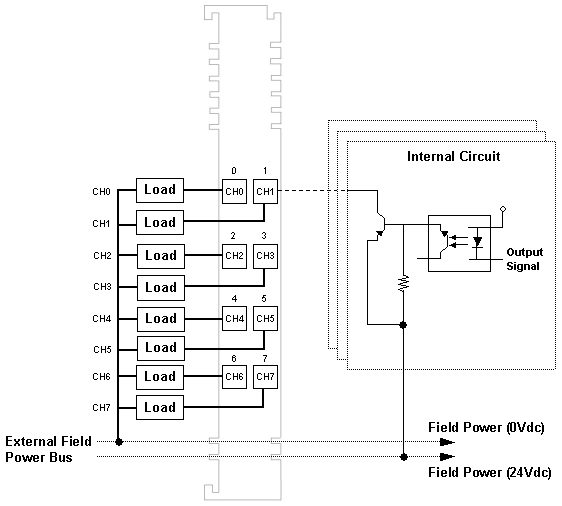

  • Each output is electrically isolated from the controller by the use of a photocoupler.





Output Specification
Outputs per module 8 channels non-isolated, source type
LED Indicators 8 green for output status
1 green/red for slice status
Operating Frequency DC to 50Khz
ON-state Voltage Range 24Vdc nominal
11 ~ 28.8Vdc
OFF-state Voltage Drop Max. 0.3Vdc, RDS (ON) : 100mohm @ 25ºC
(200mohm @ 150ºC)
ON-state Current Min. 1mA / channel
OFF-state Leakage Current Max. 50uA (12uA)
Output Signal Delay OFF to ON: 0.3ms Max.
ON to OFF: 0.3ms Max.
Output Current Rating Max. 0.5A per output,
Max. 4.0A per common
Output Device BTS721 from Infineon
Protection

Over Temperature Shutdown: Min 150ºC / Typical 175ºC
Over Current Limit: 6.5A per 1/2/4 channel
Over Voltage Protection: Min. 42Vdc (Over Voltage Shutdown)
Short Circuit Protection: 6.5A / 4 channels
ESD Protection for Output Pin: 1.0KV
Peak Short Circuit Current Min. 9A @ Tj = 25ºC
Min. 5A @ Tj = 150ºC

General Specification
ID 0x00120081
Logic Power Dissipation Max. 40mA @ 5.0Vdc
Isolation I/O to Logic: Photocoupler isolation
Isolation Voltage: 1250Vrms/Vac
Field Power: No isolation
Field Power
(Internal Power Bus)		 Supply Voltage: 24Vdc nominal
Voltage Range: 11 ~ 28.8Vdc
Power Dissipation: 5mA @ 28.8Vdc / channel
I/O Cables Max. AWG 14
Weight 70g
Module Size 99mm x 12mm x 70mm
(H x W x L)
Environmental Requirements See Environment Requirements





Pinouts

Pin No.
Description
0
 Output Channel 0
1
 Output Channel 1
2
 Output Channel 2
3
 Output Channel 3
4
 Output Channel 4
5
 Output Channel 5
6
 Output Channel 6
7
 Output Channel 7

Parameters

Parameter
Access
Bits
Description
Default
0
Read
and
Write
0-7
 Fault Action (channels 0 to 7)
0: Fault Value (see parameter 1)
1: Hold Last State
0
(Fault Value)
1
Read
and
Write
0-7
 Fault Value (channels 0 to 7)
0: OFF
1: ON
0
(OFF)

See Also: Slice Parameters



Memory

This slice does not support any memory registers.

See Also: Slice Memory



I/O Data


Output Data
Bit No.
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Byte 0
CH7
CH6
CH5
CH4
CH3
CH2
CH1
CH0



Slice Status LED

State
LED
Description
Not Powered,
Not Initialized		 OFF The slice is either not powered or has not been initialized.
Normal Communication Green
 Slice to network adapter communication is operating normally.
Communication Ready Flashing Green Slice to network adapter communication is ready to be started.
Communication Fault Flashing Red

Slice to network adapter communication has a fault.
Slice Fault Red

The slice has a fault.



Channel Status LED

The TSIO-4006 has 8 Channels.

State
LED
Indicates
Signal OFF OFF Normal Operation (Active)
Signal ON Green
 Normal Operation (Inactive)
