TSIO-4003; Digital Output

4 Channels of 24Vdc/0.5A Sinking Output

  • The module has 4 Channels of sink type output for 24Vdc/0.5A.

  • The connected load is switched via the digital output from the control system.

  • All outputs are electronically short-circuit protected.

  • The module has 5 status LEDs.
    (1- network status, 4- field device status)

  • Each output is electrically isolated from the controller by the use of a photocoupler.





Output Specification
Outputs per module 4 channels non-isolated, sink type
LED Indicators 4 green for input status
1 green/red for slice status
Operating Frequency DC to 50Khz
ON-state Voltage Range 24Vdc nominal
11Vac ~ 28.8Vdc
OFF-state Voltage Drop Max. 0.3Vdc, RDS (ON) @ 25ºC : 250m Ohm / Max. 400 Ohm
ON-state Current Min. 1mA / channel
OFF-state Leakage Current 50uA Max.
Output Signal Delay OFF to ON: 0.3ms Max.
ON to OFF: 0.3ms Max.
Output Current Rating Max. 0.5A per output,
Max. 2.0A per common
Output Device VNN1NV04 from ST Microelectronics
Protection

Over Temperature Shutdown: Min 150ºC / Typical 175ºC
Over Current Limit: 1.7A Min.
Short Circuit Protection: Output Signal Shutdown
Voltage Clamp: Min. 40V
ESD Protection for Output Pin: 16.5KV
Surge Current 1A for 10ms, repeatable every 3 seconds

General Specification
ID 0x000E0081
Logic Power Dissipation Max. 35mA @ 5.0Vdc
Isolation I/O to Logic: Photocoupler isolation
Isolation Voltage: 1250Vrms/Vac
Field Power: No isolation
Field Power
(Internal Power Bus)		 Supply Voltage: 24Vdc nominal
Voltage Range: 10 ~ 28.8Vdc
Power Dissipation: 5mA @ 28.8Vdc / channel
I/O Cables Max. AWG 14
Weight 70g
Module Size 99mm x 12mm x 70mm
(H x W x L)
Environmental Requirements See Environment Requirements

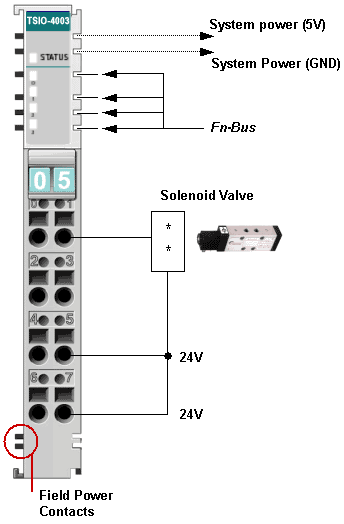

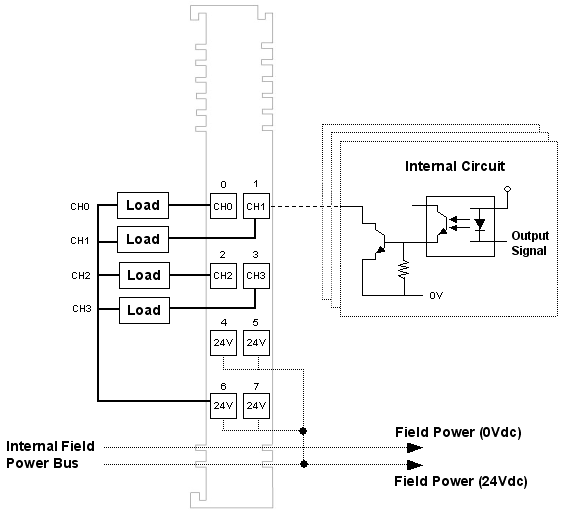

Pinouts

Pin No.
Description
0
 Out 0, Output Channel 0
1
 Out 1, Output Channel 1
2
 Out 2, Output Channel 2
3
 Out 3, Output Channel 3
4
 Output Field Power (+24Vdc)
5
 Output Field Power (+24Vdc)
6
 Output Field Power (+24Vdc)
7
 Output Field Power (+24Vdc)

Parameters

Parameter
Access
Bits
Description
Default
0
Read
and
Write
0-3
 Fault Action (channels 0 to 3)
0: Fault Value (see parameter 1)
1: Hold Last State
0
(Fault Value)
4-7
 Reserved
0
1
Read
and
Write
0-3
 Fault Value (channels 0 to 3)
0: OFF
1: ON
0
(OFF)
4-7
 Reserved
0

See Also: Slice Parameters



Memory

This slice does not support any memory registers.

See Also: Slice Memory



I/O Data


Output Data
Bit No.
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Byte 0
Not Used
CH3
CH2
CH1
CH0



Slice Status LED

State
LED
Description
Not Powered,
Not Initialized		 OFF The slice is either not powered or has not been initialized.
Normal Communication Green
 Slice to network adapter communication is operating normally.
Communication Ready Flashing Green Slice to network adapter communication is ready to be started.
Communication Fault Flashing Red

Slice to network adapter communication has a fault.
Slice Fault Red

The slice has a fault.



Channel Status LED

The TSIO-4003 has 4 Channels.

State
LED
Indicates
Signal OFF OFF Normal Operation (Active)
Signal ON Green
 Normal Operation (Inactive)
