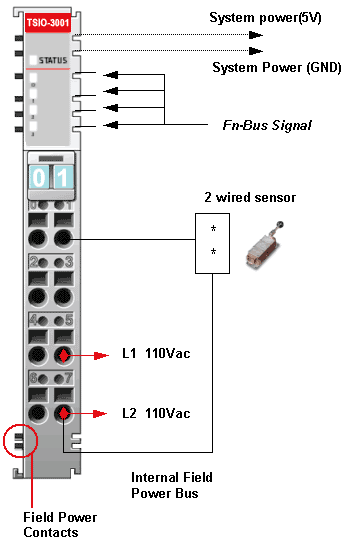

| TSIO-3001; Digital Input4 Channels of 110Vac  Input

          |  |

               The module has 4 Channels of input. It receives signals
                with values of 110Vac.

The AC input module receives the control signal from AC field
                devices. (sensor, etc)

 The module has 5 status LEDs. (1- network status, 4- field device status)

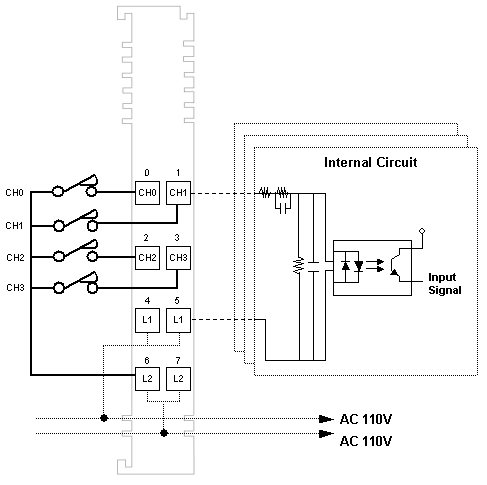

A photocoupler is used for electrical isolation between the
                controller and external field connections.

The TSIO-8002 (Field Power Isolator) must be used for operation
                with 110Vac.   |

          | Input Specification |
          | Inputs per module | 4 channels |
          | LED Indicators | 4 green for input status 1 green/red for slice status
 |
          | ON-state Voltage Range | 120Vac nominal 85 ~ 132Vac
 |
          | OFF-state Voltage Range | 0Vdc nominal -3 ~ 45Vdc
 |
          | ON-state Current | Max.8mA / channel @ 132Vac |
          | Input Signal Delay | OFF to ON: 10ms Max. ON to OFF: 10ms Max.
 |
          | Nominal Input Impedance | Typ. 11K Ohm |
          | Frequency Range | 47 ~ 63Hz |


          | General Specification |
          | ID | 0x00090041 |
          | Logic Power Dissipation | Max. 35mA  @ 5.0Vdc |
          | Isolation | I/O to Logic: Photocoupler
            isolation Isolation Voltage: 1250Vrms/Vac
 |
          | Field Power (Internal Power Bus)
 | Supply Voltage: 120Vac nominal Voltage Range: 85 ~ 132Vac
 |
          | I/O Cables | Max. AWG 14 |
          | Weight | 70g |
          | Module Size | 99mm x 12mm x 70mm (H x W x L)
 |
          | Environmental Requirements | See Environment
            Requirements |

 Pinouts

          |  |

                | Pin No. | Description |
                | 0 | Input Channel 0 |
                | 1 | Input Channel 1 |
                | 2 | Input Channel 2 |
                | 3 | Input Channel 3 |
                | 4 | L1 Output AC 110V |
                | 5 | L1 Output AC 110V |
                | 6 | L2 Output AC 110V |
                | 7 | L2 Output AC 110V |  |  ParametersThis slice does not support any parameters.  See Also: Slice Parameters    Memory This slice does not support any memory registers. See Also: Slice Memory    I/O Data

          |  | Input Data |

                | Bit No. | Bit 7 | Bit 6 | Bit 5 | Bit 4 | Bit 3 | Bit 2 | Bit 1 | Bit 0 |
                | Byte 0 | Not Used  | CH3 | CH2 | CH1 | CH0 |  |    Slice Status LED

          | State | LED | Description |
          | Not Powered, Not Initialized
 | OFF | The slice is either not powered or has not been initialized. |
          | Normal Communication | Green
 | Slice to network adapter communication is operating normally. |
          | Communication Ready | Flashing Green | Slice to network adapter communication is ready to be started. |
          | Communication Fault | Flashing Red | Slice to network adapter communication has a fault. |
          | Slice Fault | Red | The slice has a fault. |    Channel Status LEDThe TSIO-3001 has 4 Channels.


          | State | LED | Indicates |
          | Signal OFF | OFF | Normal Operation (Active) |
          | Signal ON | Green
 | Normal Operation (Inactive) |       |
