TSIO-2004; Digital Input

4 Channels of 12V/24Vdc Sourcing Input

  •  The module has 4 Channels of source type input. It receives signals with values of 12Vdc/24Vdc.

  • The digital input module receives the control signal from digital field devices. (sensor, etc)

  • The module has 5 status LEDs.
    (1- network status, 4- field device status)

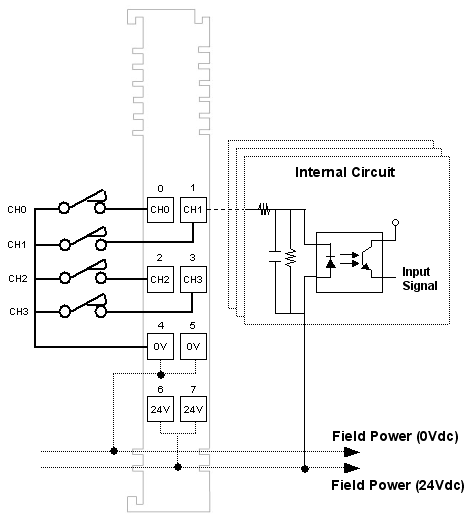

  • A photocoupler is used for electrical isolation between the controller and external field connections.

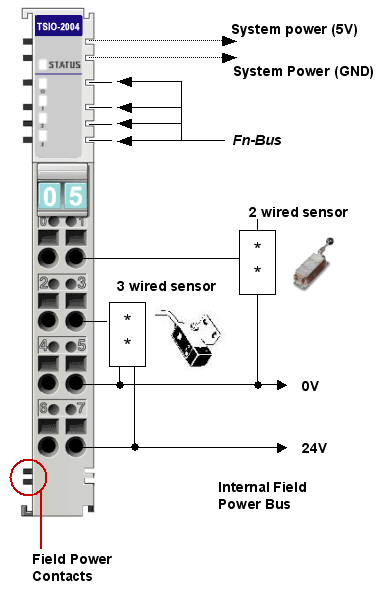

  • The module has 2 wires. A 3-wire sensor (proximity, etc) can also be connected.





Input Specification
Inputs per module 4 channels of non-isolated, source type
LED Indicators 4 green for input status
1 green/red for slice status
ON-state Voltage Range 24Vdc nominal
11 ~ 28.8Vdc
OFF-state Voltage Range 0Vdc nominal
-3 ~ 5Vdc
ON-state Current Max. 6mA / channel @ 28.8Vdc
Input Signal Delay OFF to ON: 3ms Max.
ON to OFF: 3ms Max.
Nominal Input Impedance Typ. 5.1K Ohm
Filtering Time Typ. 1.5ms

General Specification
ID 0x00040041
Logic Power Dissipation Max. 35mA @ 5.0Vdc
Isolation I/O to System: Photocoupler isolation
Isolation Voltage: 1250Vrms/Vac
Field Power
(Internal Power Bus)		 Supply Voltage: 24Vdc nominal
Voltage Range: 11 ~ 28.8Vdc
I/O Cables Max. AWG 14
Weight 70g
Module Size 99mm x 12mm x 70mm
(H x W x L)
Environmental Requirements See Environment Requirements





Pinouts

Pin No.
Description
0
 Input Channel 0
1
 Input Channel 1
2
 Input Channel 2
3
 Input Channel 3
4
 Field Ground (0V)
5
 Field Ground (0V)
6
 Field Power (+24V)
7
 Field Power (+24V)

Parameters

This slice does not support any parameters.

See Also: Slice Parameters



Memory

This slice does not support any memory registers.

See Also: Slice Memory



I/O Data


Input Data
Bit No.
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Byte 0
Not Used
CH3
CH2
CH1
CH0



Slice Status LED

State
LED
Description
Not Powered,
Not Initialized		 OFF The slice is either not powered or has not been initialized.
Normal Communication Green
 Slice to network adapter communication is operating normally.
Communication Ready Flashing Green Slice to network adapter communication is ready to be started.
Communication Fault Flashing Red

Slice to network adapter communication has a fault.
Slice Fault Red

The slice has a fault.



Channel Status LED

The TSIO-2004 has 4 Channels.

State
LED
Indicates
Signal OFF OFF Normal Operation (Active)
Signal ON Green
 Normal Operation (Inactive)
